Description

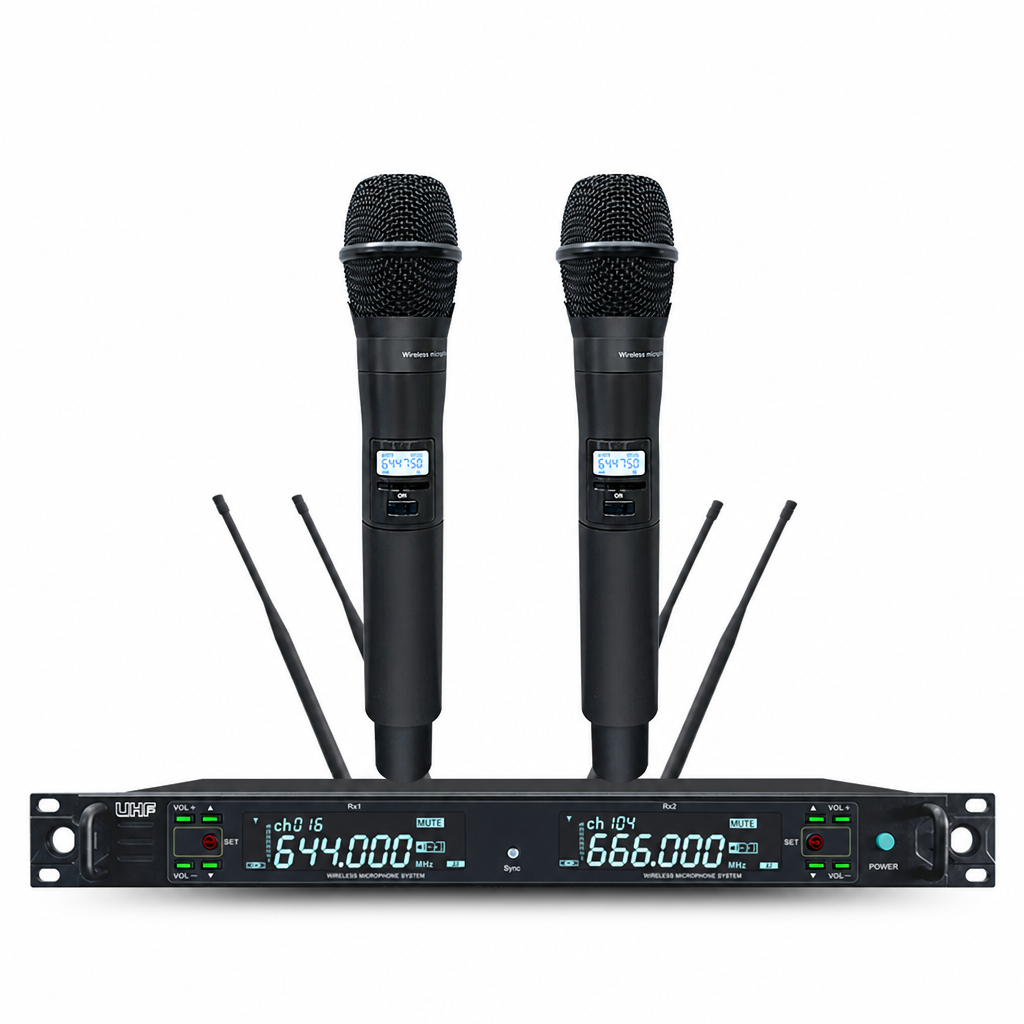

WH-600 Dual Handheld UHF Wireless Microphone System, 200 Channels

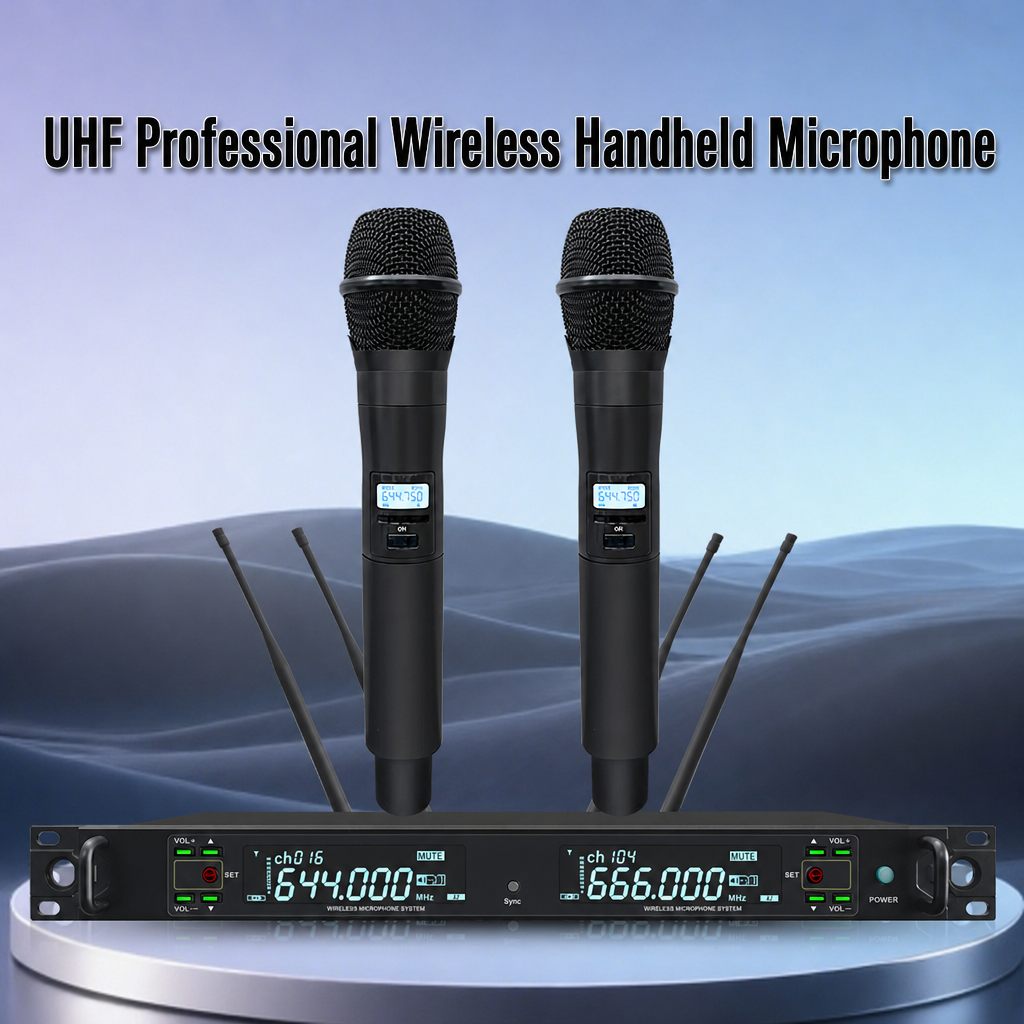

A complete two-channel UHF handheld system in one rack unit: a dual receiver plus two handheld transmitters, running across 610-690 MHz with 200 selectable frequencies. The receiver scans for a clean channel, then pairs each handheld over infrared, so setup takes a couple of minutes rather than a manual frequency hunt. Each channel has its own LCD showing channel, frequency and RF/audio level, and the super-cardioid dynamic capsules keep the pickup on the voice instead of the room.
Key Features
- Two Handhelds, One Rack Receiver — A single 1U receiver drives two handheld transmitters, so a presenter and a singer - or two speakers - share one tidy rack space.

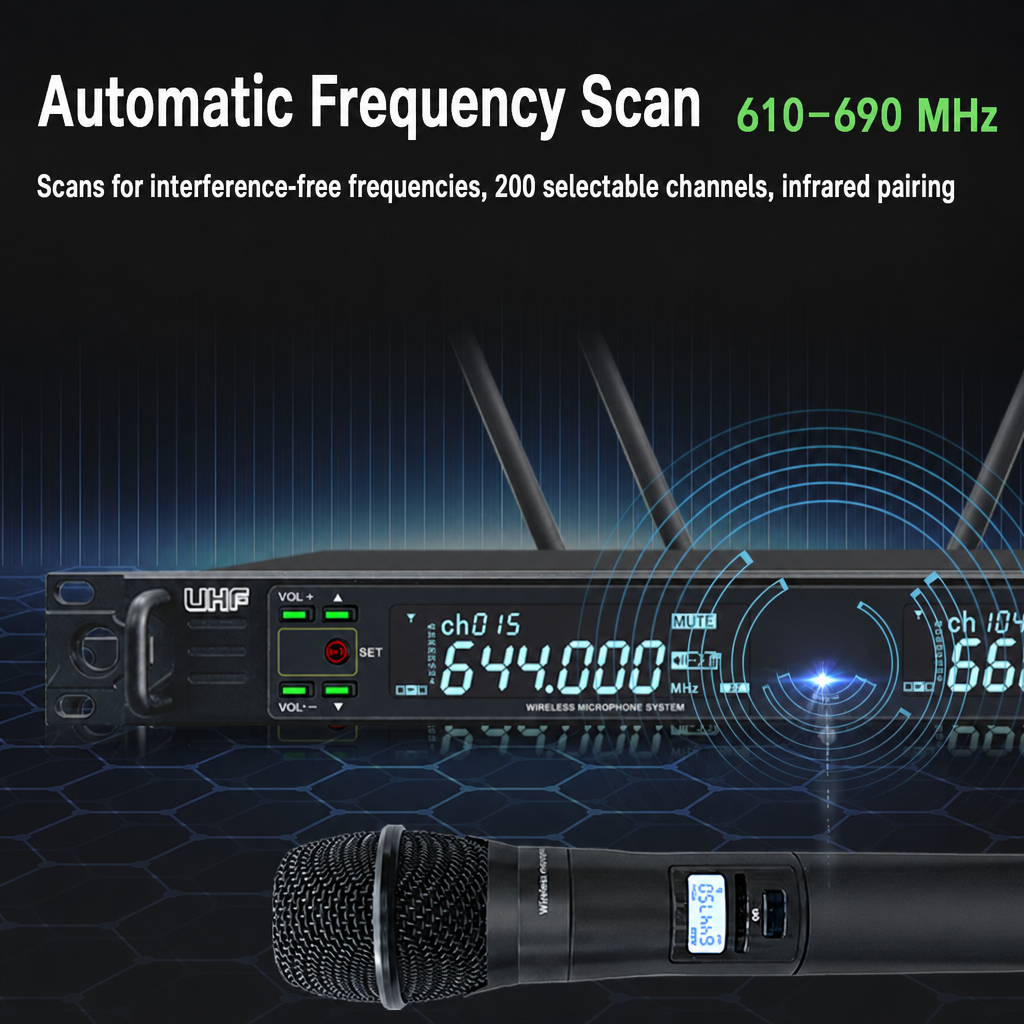

- Automatic Frequency Scan — The receiver scans the 610-690 MHz band for a clean channel instead of leaving you to guess, with 200 selectable frequencies to choose from.
- Infrared Pairing — Hold the transmitter near the receiver and sync over IR; each channel then shows its assigned frequency on the LCD.

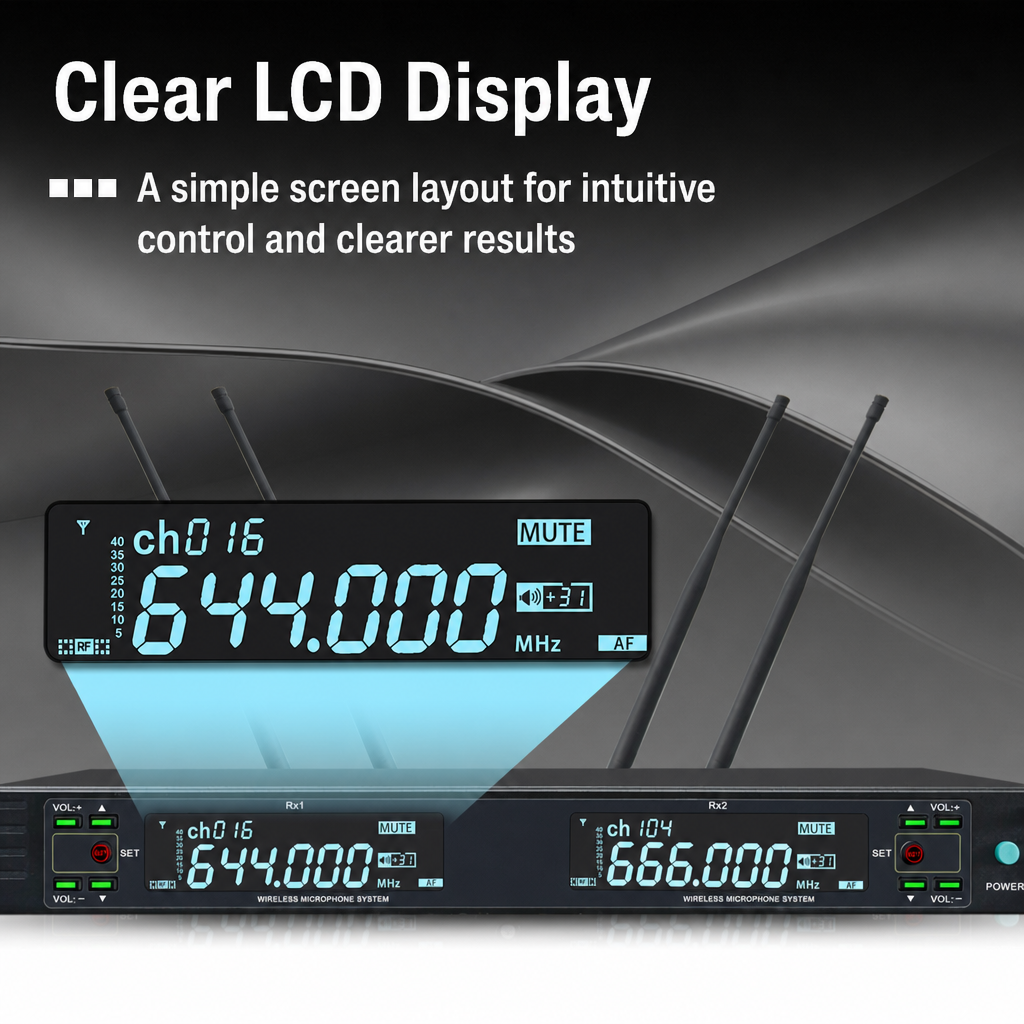

- Readable LCD Per Channel — Channel number, frequency, RF level and audio level sit on one screen per channel, so you can see a weak pack before the audience does.
- Super-Cardioid Dynamic Capsules — A tight super-cardioid pattern keeps the pickup on the voice and away from monitors and side-stage noise.
- 8-12 Hours On Replaceable Batteries — Removable 300-500 mAh cells last a full event and swap out in seconds when they do not.
Specifications
| Model | WH-600 |
| Configuration | 1 dual-channel receiver + 2 handheld transmitters (1-to-2) |
| Element | Dynamic, super-cardioid |
| Frequency Band | UHF, 610 - 690 MHz |
| Channels | 200 selectable frequencies with automatic interference-free scan |
| Frequency Pairing | Infrared (IR) sync |
| Receiver Display | LCD per channel: channel number, frequency, RF and AF meters, MUTE |
| Signal-to-Noise Ratio | At least 75 dB |
| Battery | Replaceable battery, 300 - 500 mAh |
| Battery Life | 8 - 12 hours |
| Receiver Size | 480 x 200 x 45 mm, 1U rack-mountable |
| Packed Weight | 3,450 g |
| Packed Size | 56.8 x 38.8 x 8 cm |
| Origin | Guangdong, China |
What’s in the Box
- 1 x dual-channel rack receiver
- 2 x handheld transmitters
Care & Usage
- Run the automatic scan before doors open, then sync each transmitter over IR and confirm the frequency matches on both displays.
- Keep the receiver antennas upright and clear of metal racks; keep transmitters at least a few metres from the receiver to avoid swamping the front end.
- Charge or replace the batteries before each event and carry spares - 8-12 hours is typical, not guaranteed.
- Switch transmitters off before storage and keep the system dry.
