Description
MiCWL Audio Inc.

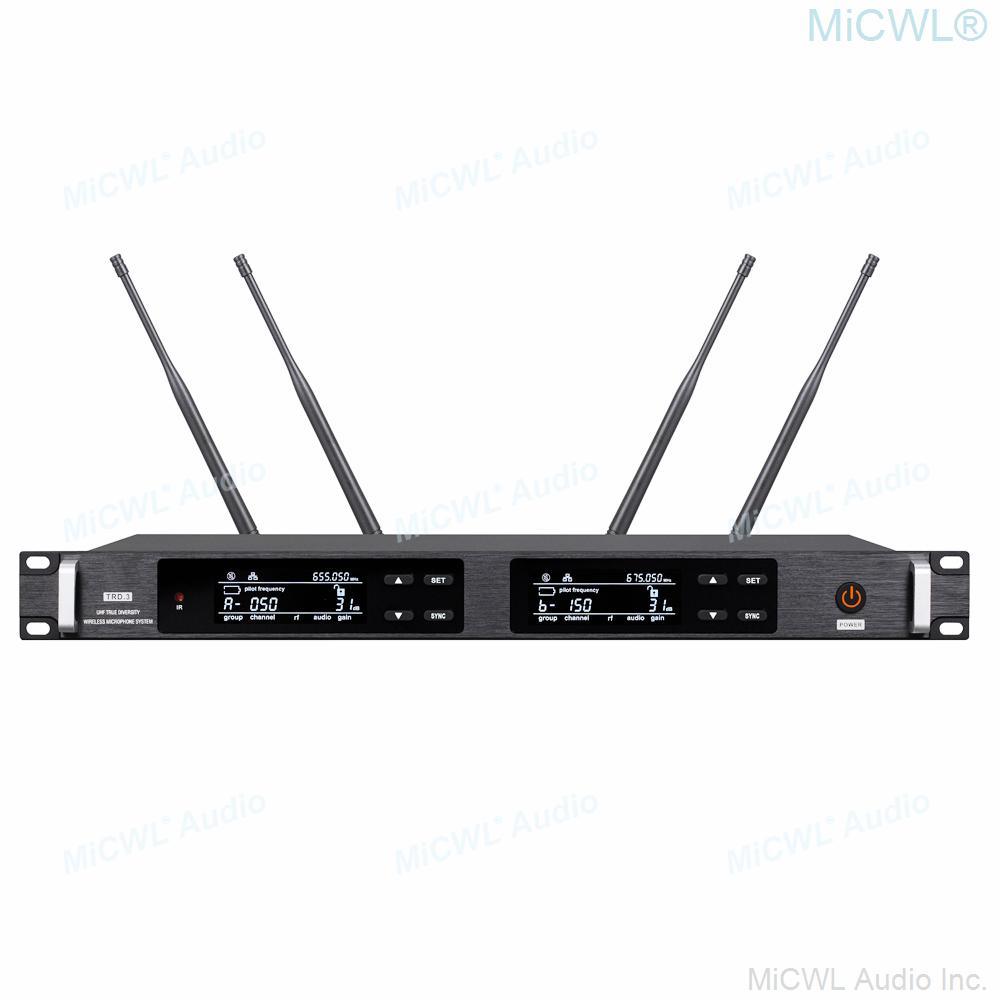

AD4D Professional Digital Wireless Audio Microphone System
True Diversity 300 Channel frequency adjustment Large Range - with 4 Antenna

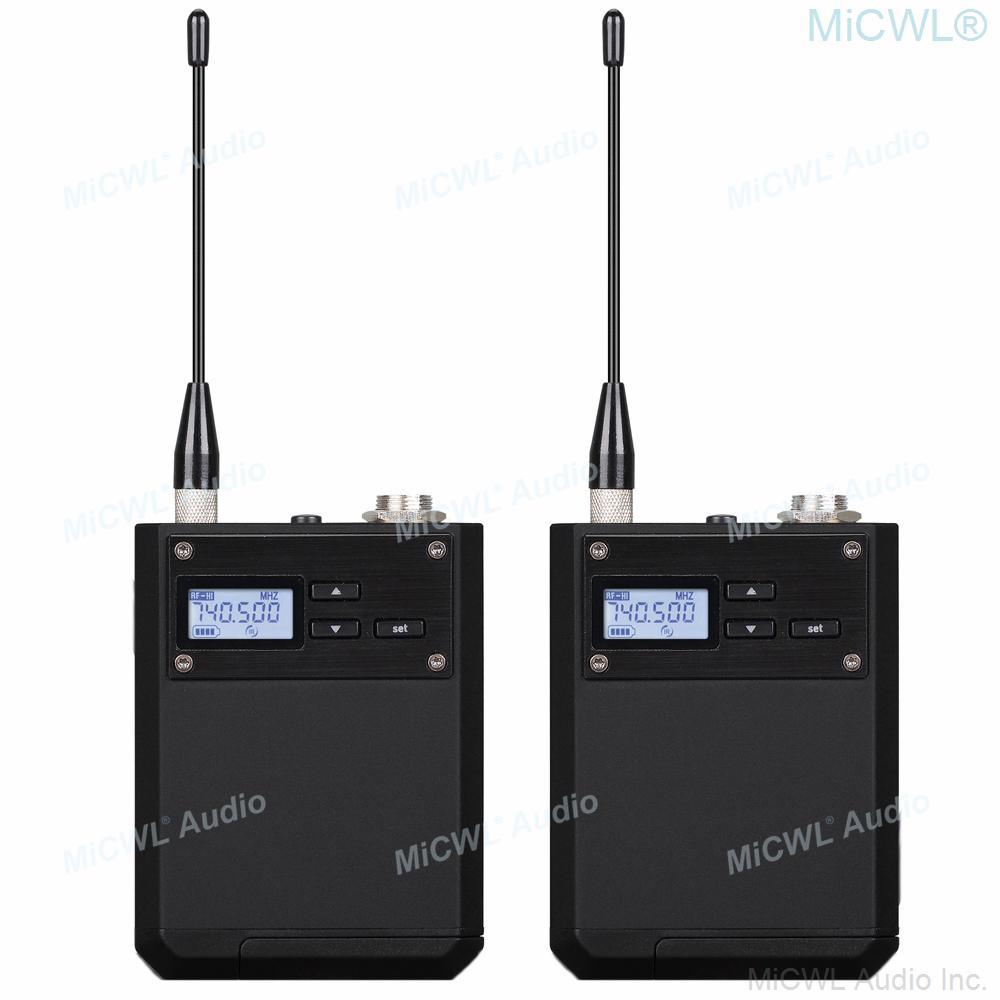

Dual Metal BeltPack Transmitter with 2 Headset Microphones
MSRP: $2499.00
Brand New - Original Packaging
Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.
Features:
1. True diversity receiver, dual-channel independent selection system. It can minimize the occurrence of frequency interruption.
2. The dual-channel independent AFS frequency automatic search function can quickly scan and lock the frequency with the least worry in the working environment.
3. Receiver and transmitter use IR infrared frequency matching technology to synchronize codes with one click.
4. Professional performance-level phase lock circuit, combined with noise lock squelch control and digital pilot technology, when the transmitter is turned off, the pilot control mutes the AF signal to suppress noise, and at the same time mutes the corresponding receiver. It guarantees the effective blocking of the worry signal.
5. Backlit LED display indicates the working status of RF and AF signal strength, battery status, diversity channel indication (A/B), frequency, frequency group/channel, etc.
6.Accurate electronic volume control technology, the receiving distance is adjustable in three gears, and has an operation key lock function to prevent misuse.
7. TRD.3 true diversity wireless system is specially designed for touring and fixed installation purposes, and provides a variety of sound heads with different sound properties for replacement. It has the highest reliability, sound quality and transmission stability.
System indicators:
RF range: 645.25 --685.05MHz (A channel: 645.25-665.05, B channel: 665.25---685.05)
Available bandwidth: 30MHz per channel (total 60MHz)
Modulation method: FM frequency modulationNumber of channels: 300 channels of infrared automatic frequency matching
Operating temperature: minus 18 degrees Celsius to 50 degrees Celsius
Squelch mode: automatic noise detection and digital ID code squelch
Offset: 45KHz
Dynamic range: >110dB
Audio response: 60Hz-18KHz
Comprehensive signal-to-noise ratio: >105dB
Comprehensive distortion: <0.5%

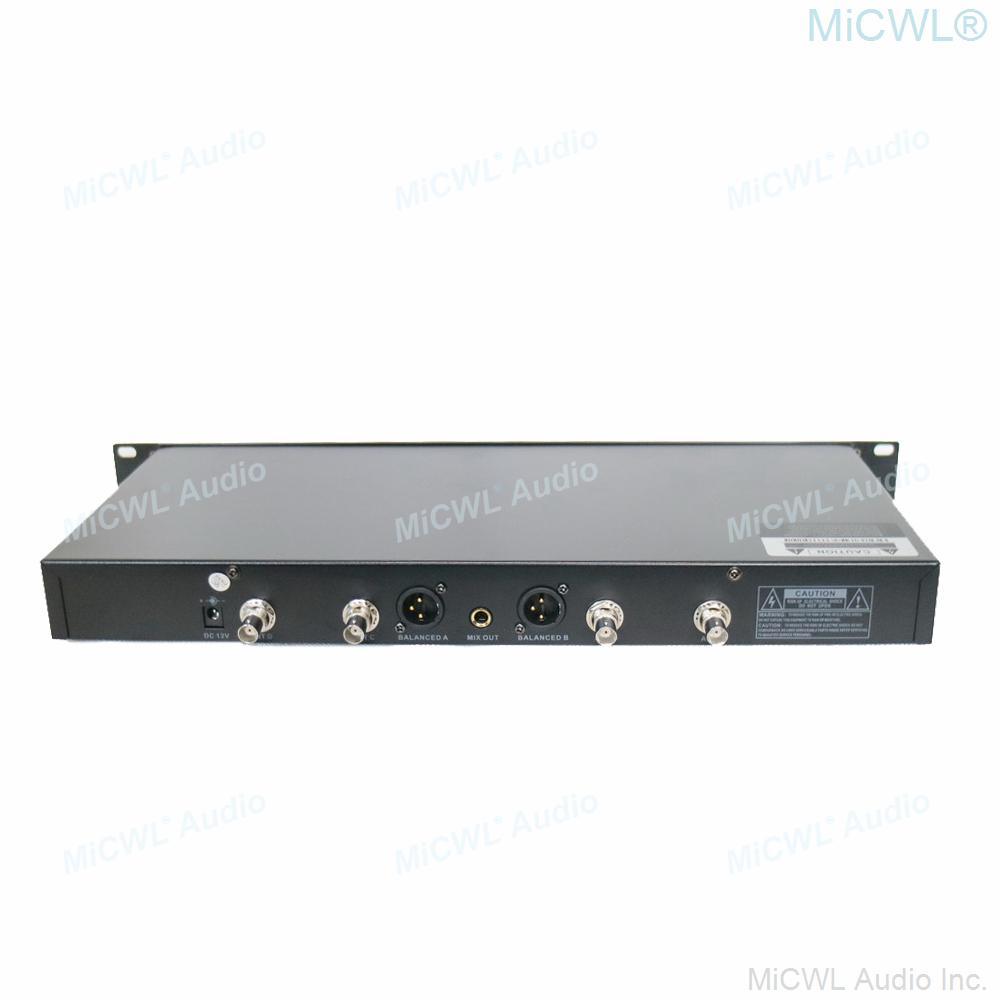

Digital Host Receiver specifications:
Receiving method: double-conversion superheterodyne, double-tuned true diversity reception
Oscillation mode: PLL phase locked loop
IF frequency: first IF: 110MHz, second IF: 10.7MHz
Antenna interface: TNC
Display mode: LCD
Sensitivity: -100dBm (40dB S/N)
Spurious suppression: >80dB
Audio output: unbalanced: +4dB (1.25V)/5KΩ
Balance: +10dB(1.5V)/600Ω
Supply voltage: DC12V Supply current: 450mA
Handheld Transmitter index:
Optional dynamic microphone handheld, capacitive microphone handheld, lavalier, head-mounted
Oscillation mode: PLL phase locked loop
Output power: 3dBm-10dBm (LO/HI conversion)
Battery: 2 "1.5V5" batteries Current: <100mA(HF), <80mA(LF)
Use time (alkaline battery): about 8 hours at high power.
Zinc aluminum alloy structure (OK-2H/3H)
All aluminum alloy structure (OK-5H/66H)
(1) 1X Digital LED Receiver Host ,
(2) 2x Metal Transmitter Transimtter with 2 Headset Microphones
(3) 1x 1/4" plug Audio Cable,
(4) 1x AC-DC adapter ( 110V or 240V universal ),
(5) 4X Antenna ,
(6) 1X Manual.
Warranty：
One Year Warranty Covered by MICWL Audio Inc.
