Description
R-0507 All-Metal 4-Channel UHF Wireless Microphone System 1-to-4

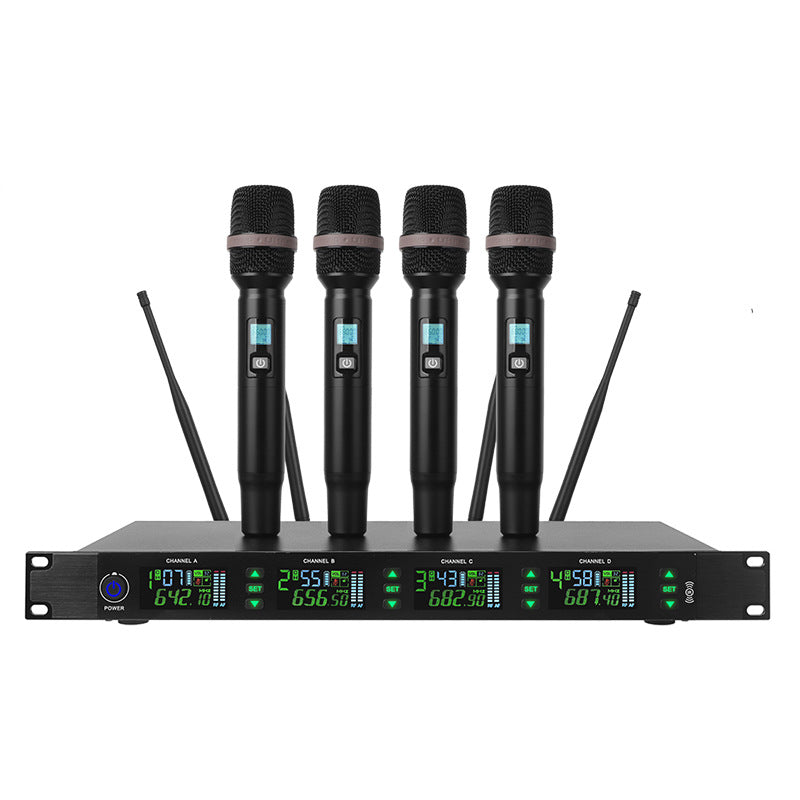

Run four handheld microphones from a single 1U rack receiver. The R-0507 pairs every channel over infrared in seconds — no menus, no manual frequency hunting — then holds a clean, low-noise signal across a wide working distance. All-metal handheld bodies, a rugged rack-mount receiver and balanced XLR outputs make it a dependable choice for stages, KTV rooms, conference halls, classrooms, live streams and outdoor events.
Key Features

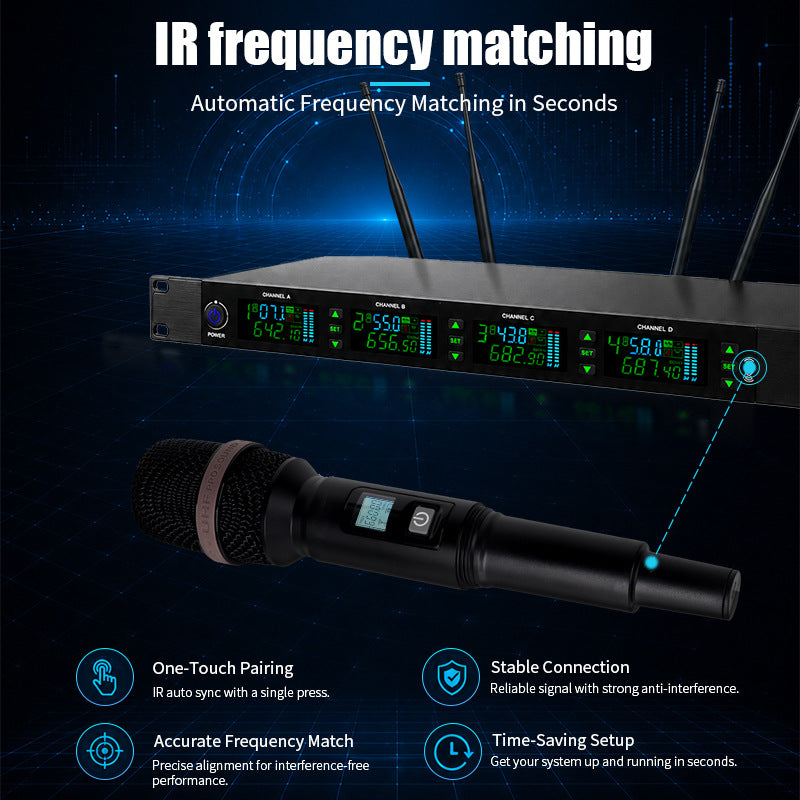

- One-Touch Infrared Sync — Press once and the receiver matches each transmitter automatically - all four channels are live in seconds, no menu hunting.
- True 4-Channel Independence — Channel A / B / C / D each carry their own transmitter, frequency readout and level meter, so the full system can run at the same time without dropouts.

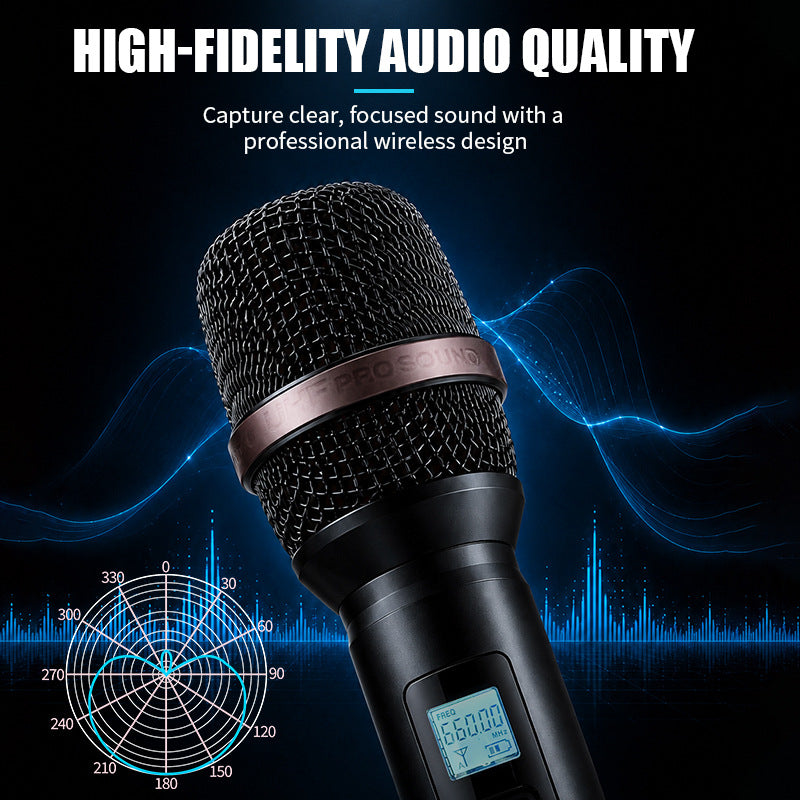

- All-Metal Handheld Transmitters — Solid metal bodies with dynamic capsules, on-board LCD frequency display and a tactile mute / power switch.

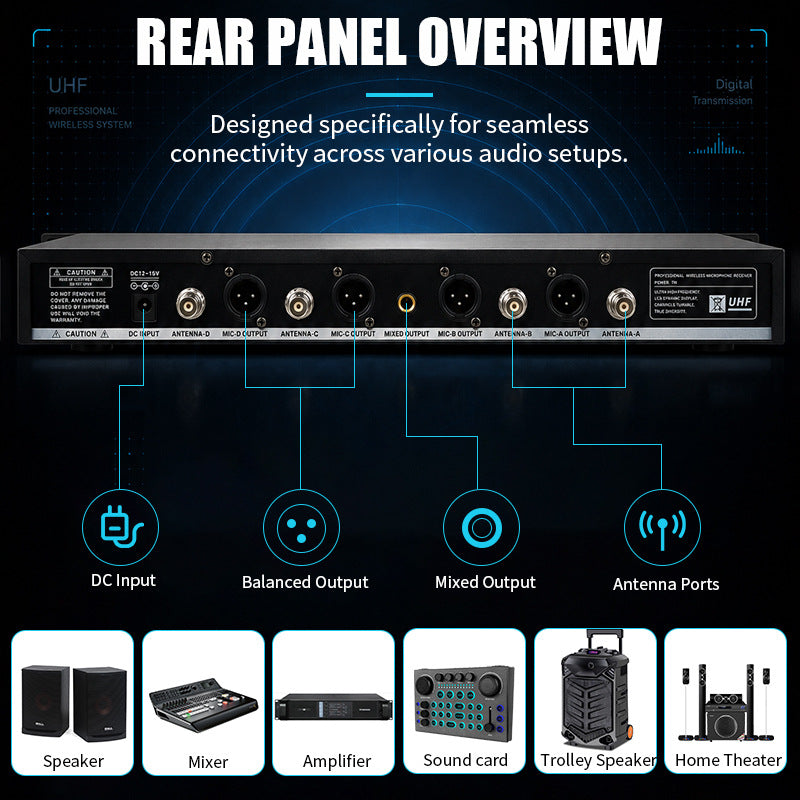

- Full Rear-Panel Connectivity — 4 balanced XLR outputs, a mixed output, DC input and dual antenna ports with detachable antennas for a clean install.
- Low-Noise, Long-Range Reception — Signal-to-noise ratio of ≥ 85 dB with an anti-interference design for stable transmission at distance.
- 3 - 6 Hours Per Charge — 800-1000 mAh replaceable battery packs with a Type-C charging interface - swap packs instead of stopping the show.
- Fits The Rig You Already Own — Connects to mixers, amplifiers, sound cards, trolley speakers and home-theatre systems.
Specifications
| Model | R-0507 |
| Item No. | R-0507 |
| Configuration | 1U receiver + 4 handheld transmitters (1-to-4) |
| Frequency Matching | Infrared (IR) one-touch auto sync |
| Handheld Body | All-metal, dynamic capsule |
| Polar Pattern | Omnidirectional |
| Frequency Response | 60 Hz - 15 kHz |
| Signal-to-Noise Ratio | ≥ 85 dB |
| Outputs | 4 x balanced XLR, 1 x mixed output |
| Antenna | Dual antenna ports (A / B), detachable |
| Charging Interface | Type-C |
| Battery | Replaceable pack, 800-1000 mAh |
| Battery Life | 3 - 6 hours |
| Rack Mount | 1U, 19-inch rack-mountable receiver |
| Carton Packing | 5 sets per carton (approx. 22 kg) |
| Origin | Enping, Guangdong, China |
| Recommended For | Stage, KTV, conference, teaching, live streaming, home karaoke, outdoor events |

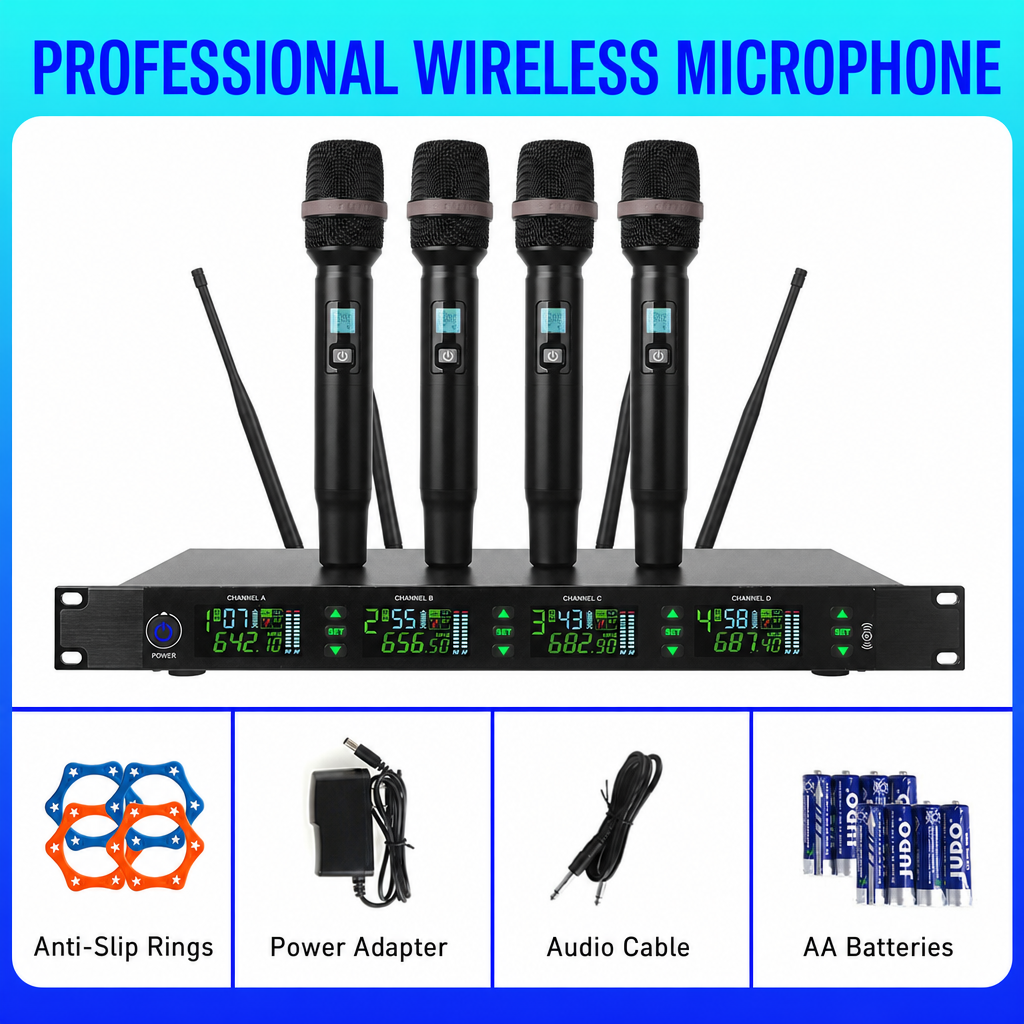

What’s in the Box
- 1 x 4-channel UHF rack receiver (1U)
- 4 x all-metal handheld transmitters
- 4 x anti-slip rings
- 1 x power adapter
- 1 x audio cable
- AA batteries as shown
Care & Usage
- Keep the receiver clear of high-power lighting, LED walls and Wi-Fi routers for the cleanest RF path.
- Run the infrared sync for each transmitter before the event and confirm the assigned frequency on both displays.
- Remove the batteries for long-term storage and keep the antennas upright while the system is in use.
Shipping & Returns
See our Shipping Policy for delivery times and our Return Policy for eligibility. Every unit is covered by our 3-Year Warranty and lifetime expert support.
For bulk orders, OEM/ODM customization and wholesale pricing, contact us at shop@micwlaudio.com. Every unit is covered by our 3-Year Warranty and lifetime expert support.
