Description

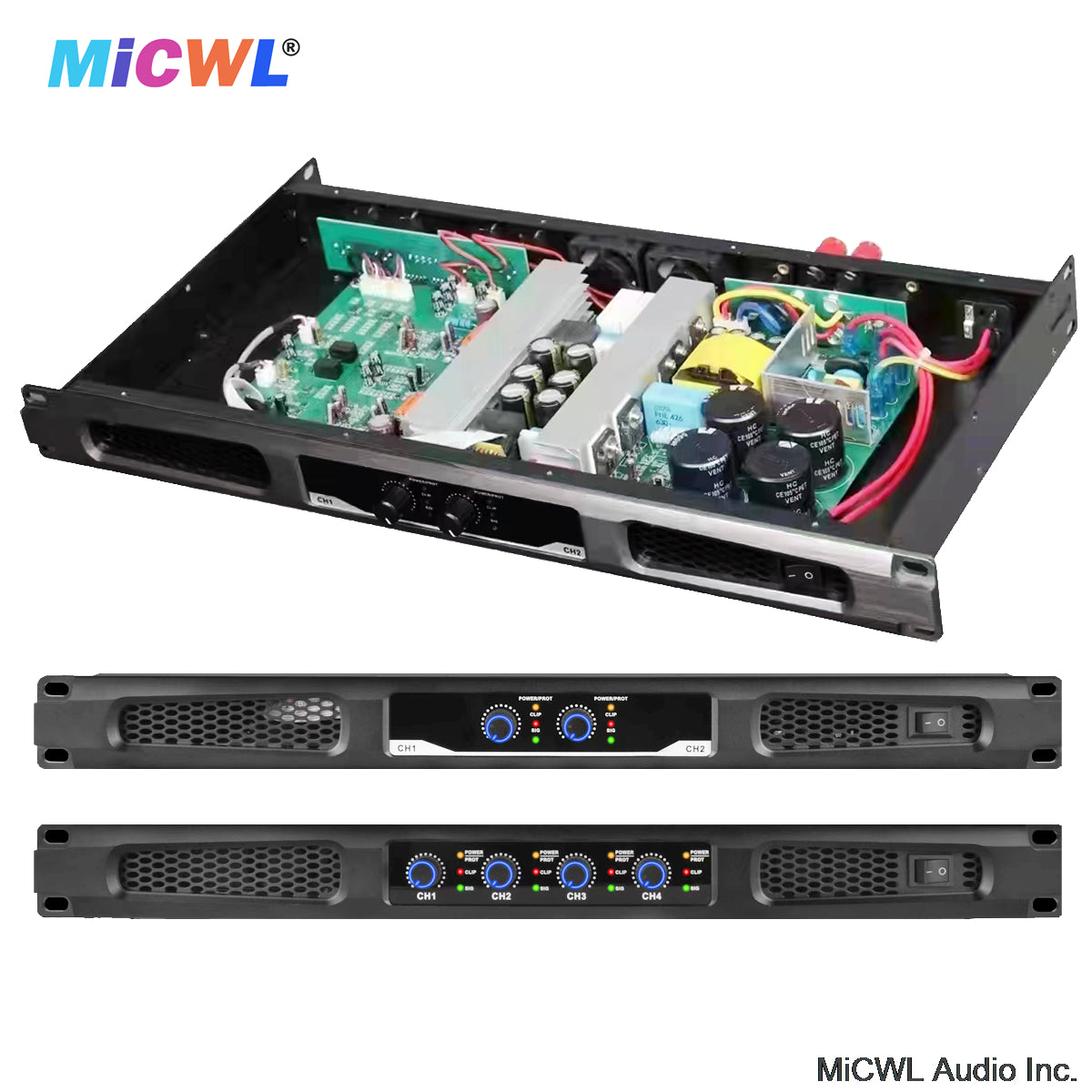

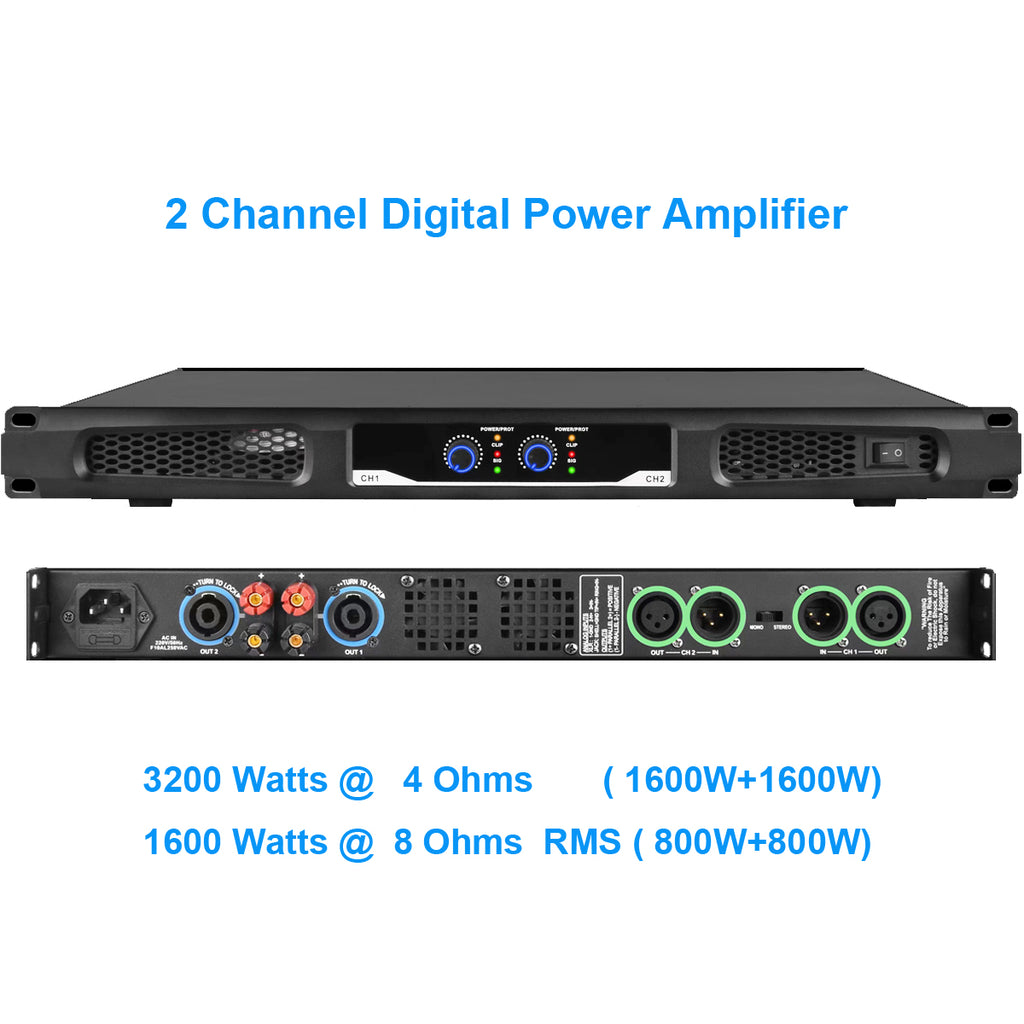

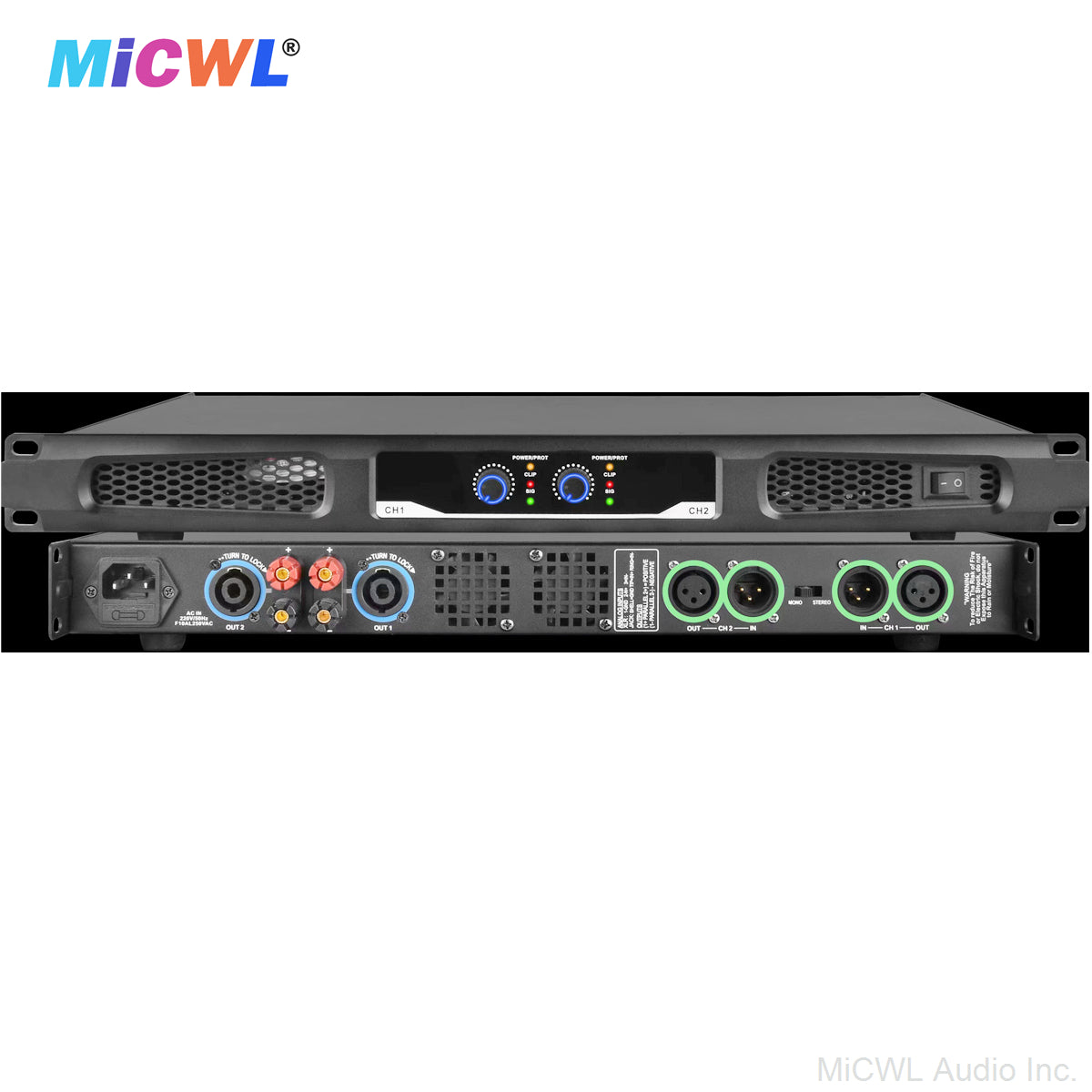

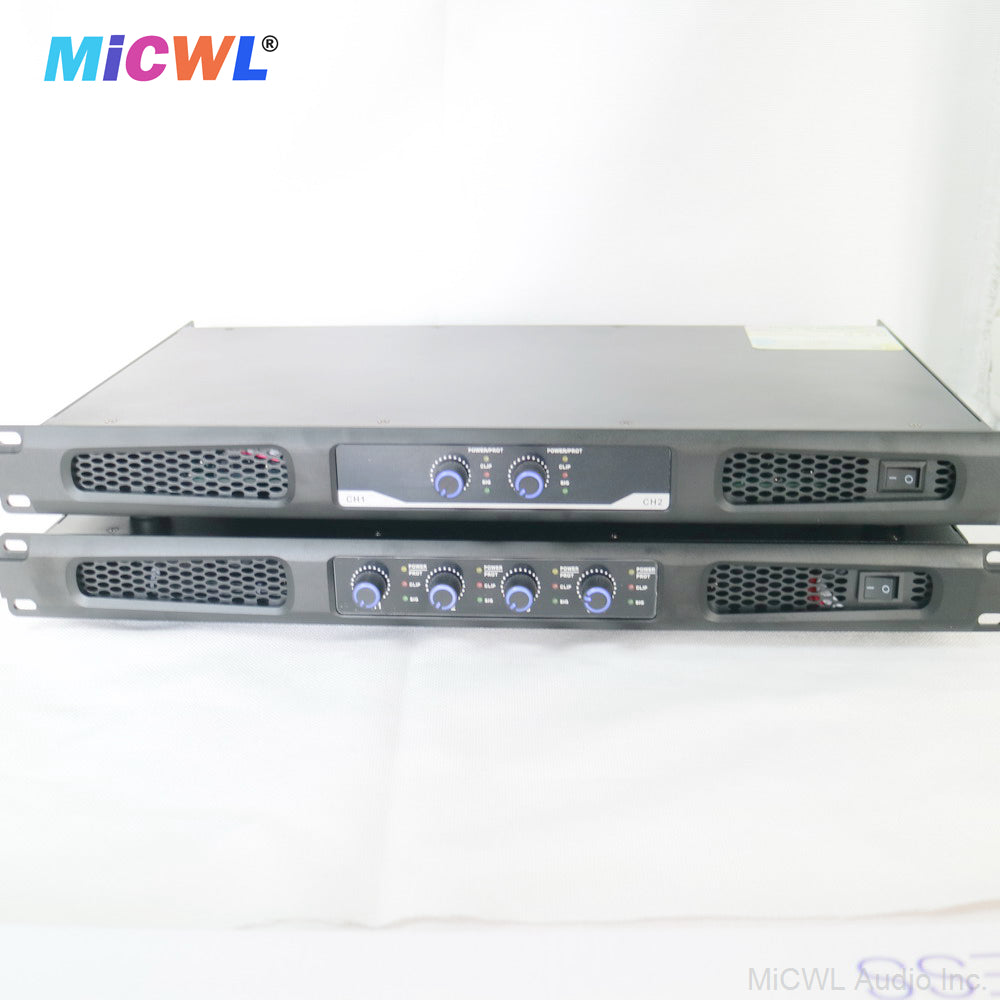

MiCWL Professional 3000W CA Series Digital Power Amplifier
3000 watts PEAK Output AMP 2 Channel 2x1500W
3000 Watts @ 4 Ohms ( 2 x 1500W )
1600 Watts @ 8 Ohms ( 2x 800W )
Brand New - Original Packaging
Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.
MICWL CA Series CA-800W Amplifer is a Professional 2 Channel Digital Power Amplifier that was developed using the expertise of professional
sound engineers,
working musicians and professional DJ's. For its price range, it's rare to find a professional power amplifier that compares with
the CA-650W awesome performance,
flexibility and crystal clear sound quality.
◆ Ultra -large switching power amplifier
◆ The protection functions such as automatic limit output, short -circuit, overload, over -temperature, boot delay and other protection functions
◆ The power amplifier is equipped with a delay startup system, which is damaged by protecting the speaker from impact

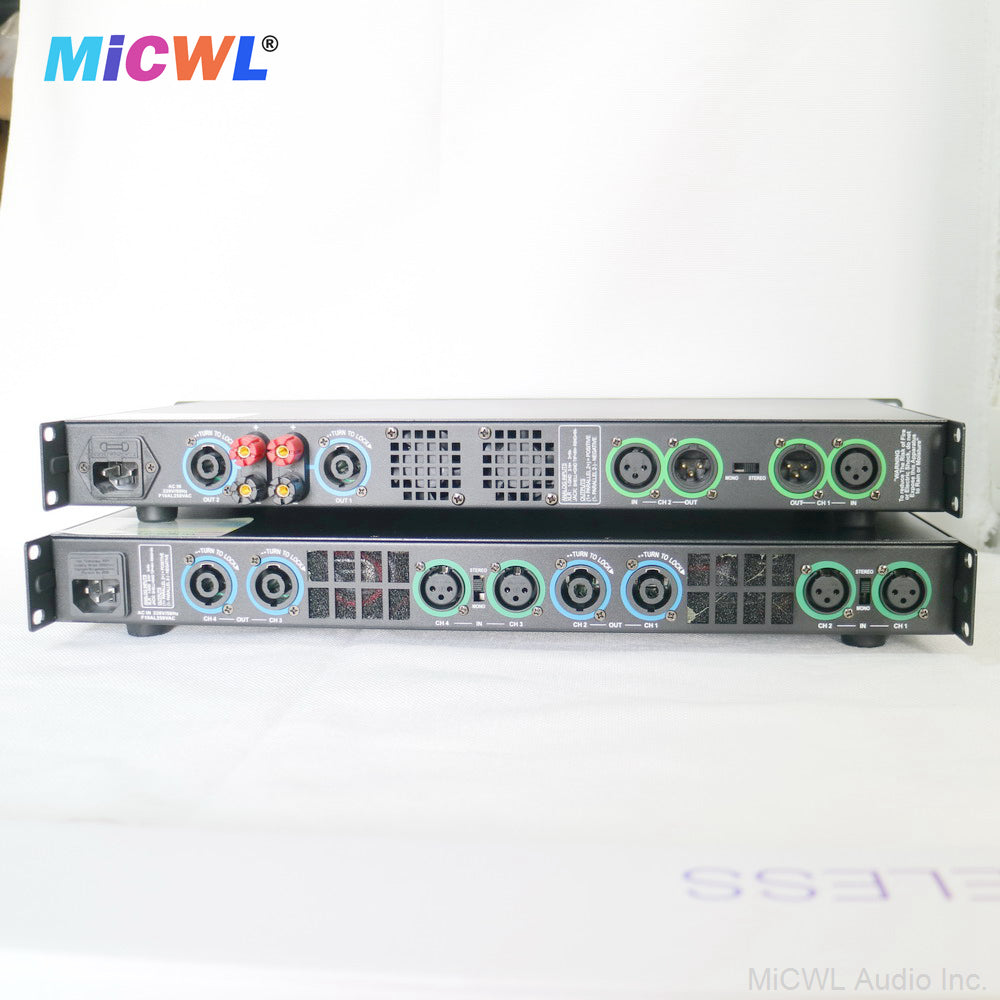

◆ The rear panel is equipped with dual channels,
◆ Balance input interface
◆ Speakon output connector
◆ 483mm standard rack structure
◆ The power amplifier part of the switching power supply part has a separate cooling system
◆ The heat dissipation fan is controlled by advanced stepless transmission circuit
◆ 1U design, light body, easy to carry and install
2x Channel
3000 Watts @ 4 Ohms ( 2 x 1500W )
1600 Watts @ 8 Ohms ( 2x 800W )
Output/output (8Ω, 1kHz): 2x800W
Output/OUTPUT (4Ω, 1kHz): 2x1500W
Frequency response/FREQUENCY Response: 20Hz ~ 20KHz ± 3dB
Total distortion/Total Distortion:
1%(8Ω, 350W/time)
Enter sensitivity/Input Sensitivity:+4DB * (1.23V)
Input impedance/input Impedance: 10kΩ (electronic balance/BALANCED)
Signal ratio/S/N Ratio: ≥80dB
Connecting terminal Connector:
Input (CH1-2): XLR input connector; output (CH1-2): Speakon output terminal; power: AC power supply input (CH1-2): xlr input connector; output (ch1-2): Speakon Output; Power: AC Power Supply.
Display light Indicator Lights:
Power display light x1 (green); input display light x 2 (yellow); peak display light x 2 (red); protecting circuit action display light x 1 (red) Power Inicator x 1 (Green), input Indicator X 2 (YELLOW ), Peak Indicator X 2 (Red); Feedback Protect Indicator X 1 (Red)
Power voltage/Power Supply Voltage:
AC110 ~ 120V, 50/60Hz AC220 ~ 240V, 50/60Hz (using internal jump switch/via inside jumping switch)
1/8 rated movement 1/8 Rated Activity Consumed Power: 50W, 80W, 110W
The temperature range of using the environment is worn tempeature range: 0 ~ 50 ℃
The humidity range of the environment is working with Humidity Range:
Below 90% RH/Under 90% RH
How much Speaker can this amplifier drive:
800W each Channel:
It Can Drive 800W or less 650W @ 8 Ohm Sound Speaker each Channel ( 1600W @ 4 Ohm each channel)
- If your speaker is no more than 800 watts, this amplifier is enough to drive.
( 2 Channel can Drive 2 Unit 800W Speakers )
