Description
E-614 Compact Small-Diaphragm Condenser Instrument Microphone, XLR
The E-614 is a compact small-diaphragm condenser microphone in a slim, all-metal pencil body. It delivers a clean, focused pickup with a ≥ 95 dB signal-to-noise ratio and a wide 20 Hz - 20 kHz response - detailed enough for drums and acoustic instruments, and composed enough for speech, podcast and interview duty. The kit arrives ready to work: a foam windscreen and a mic clip are both included.
Key Features
- Complete Compact Kit — Ships with the microphone, a foam windscreen and a mic clip - everything needed to get on a stand and start recording.
- Small-Diaphragm Condenser Capsule — A condenser element with a ≥ 95 dB signal-to-noise ratio for detailed, low-noise capture.

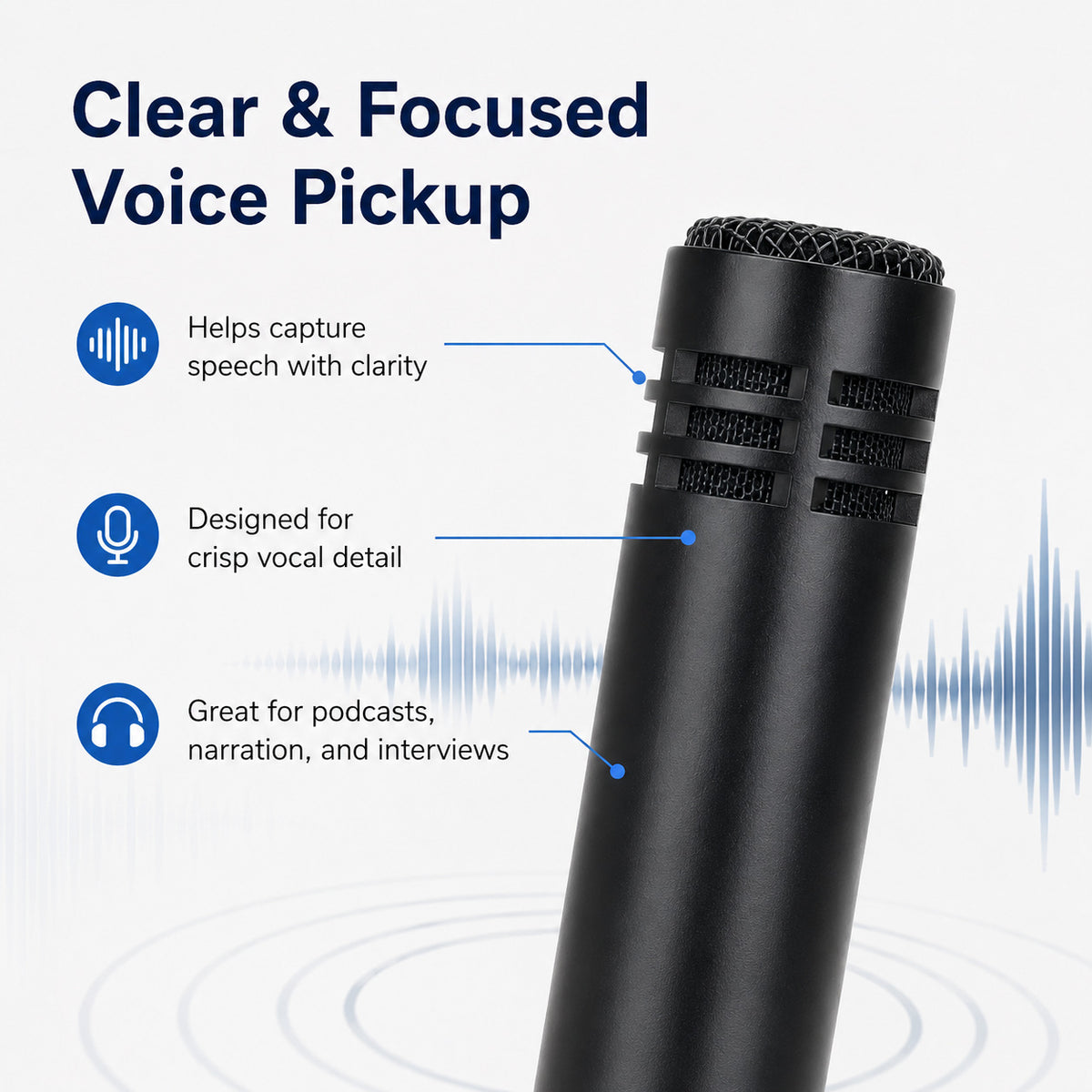

- Clear & Focused Pickup — A directional capsule keeps the instrument or voice in front, with 20 Hz - 20 kHz response.

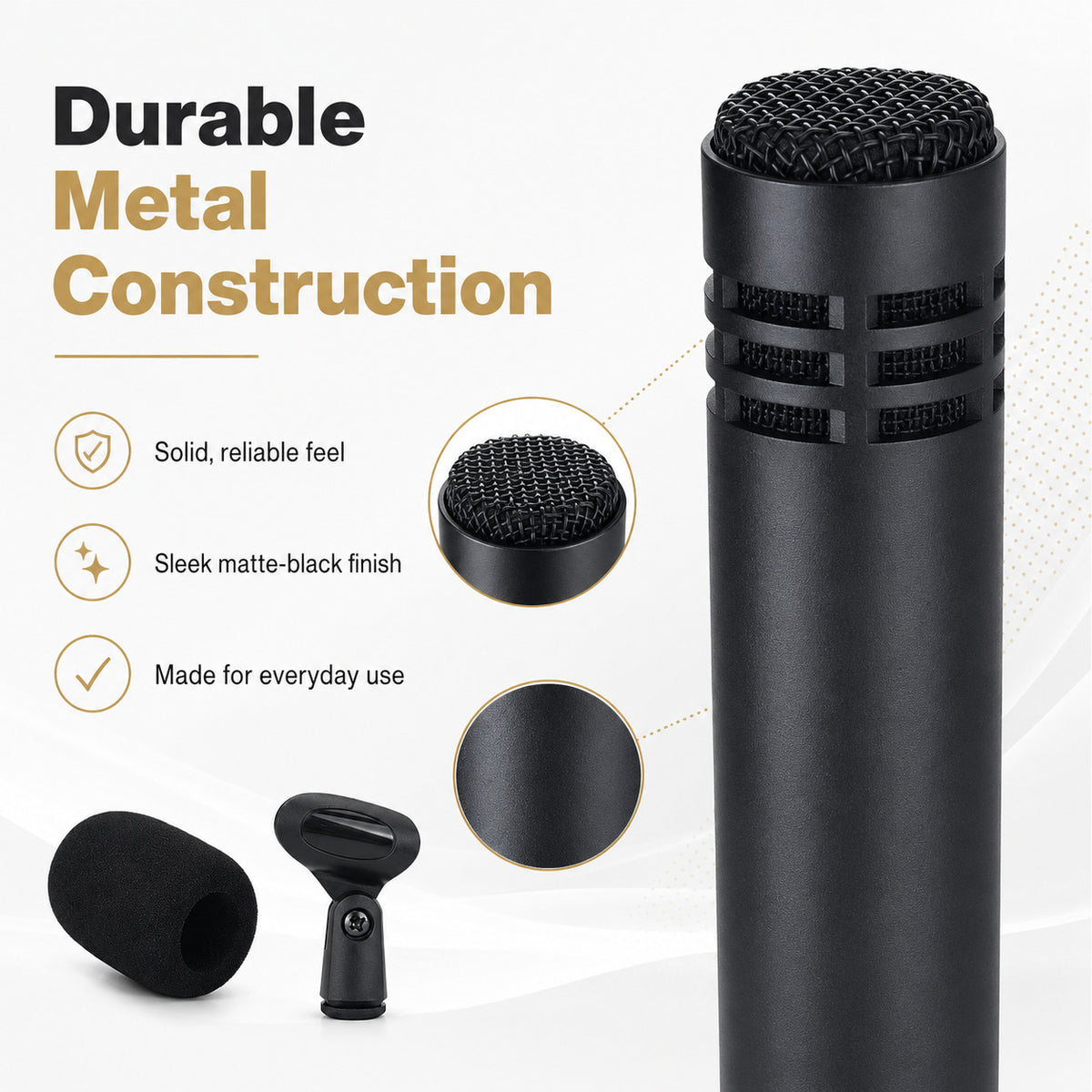

- Durable Metal Construction — Solid all-metal body with a sleek matte-black finish, built for everyday stage and studio use.

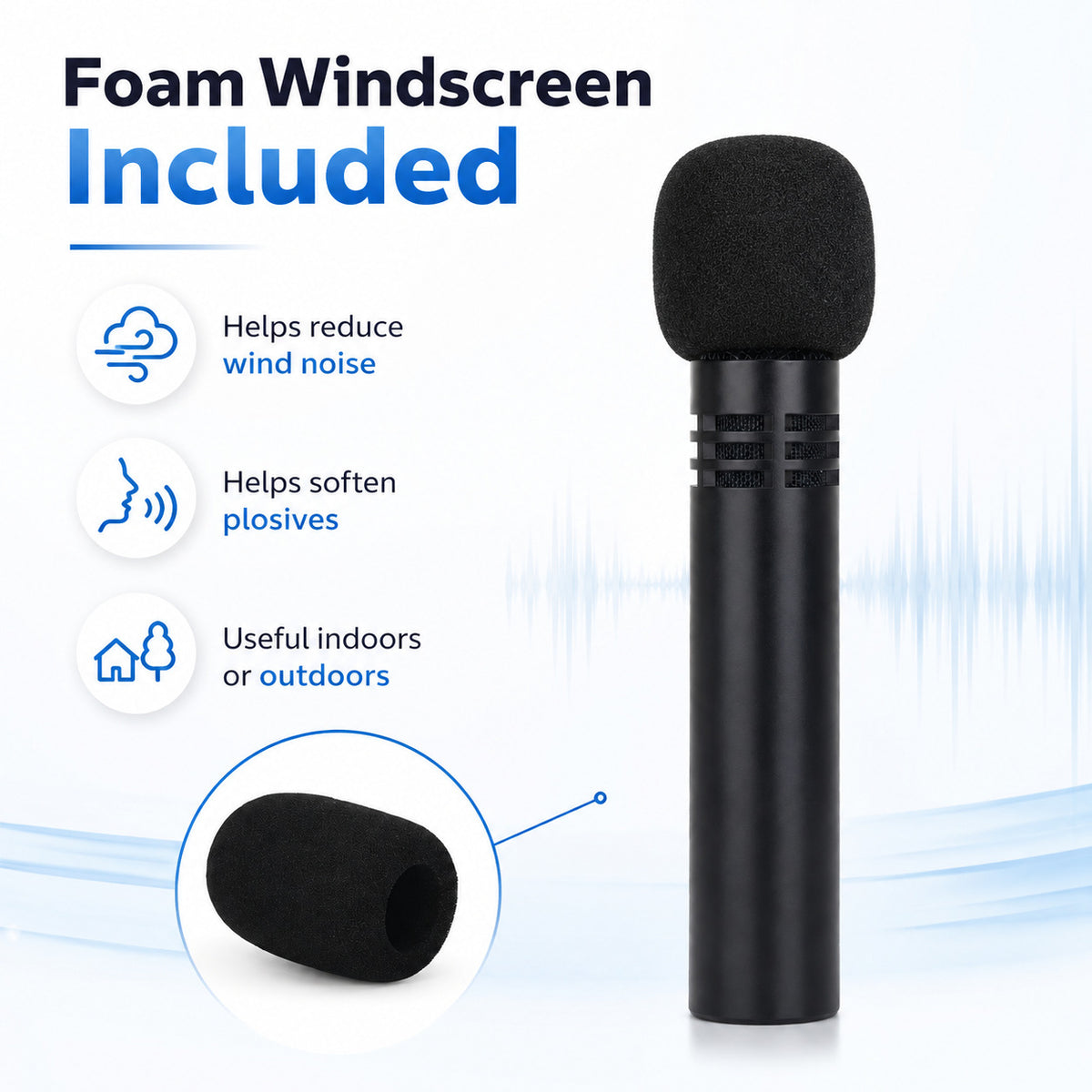

- Foam Windscreen Included — Reduces wind noise and softens plosives - useful indoors and outdoors.
- Standard 3-Pin XLR Output — Connects straight to mixers, audio interfaces and preamps over standard XLR.
Specifications
| Model | E-614 |
| Item No. | E-614 |
| Microphone Type | Small-diaphragm condenser (instrument / drum / vocal) |
| Capsule | Condenser |
| Polar Pattern | Directional (pencil-style body) |
| Frequency Response | 20 Hz - 20 kHz |
| Signal-to-Noise Ratio | ≥ 95 dB |
| Connector | 3-pin XLR |
| Connection | Wired |
| Power | External power supply required (no internal battery) |
| Channels | 1 (mono) |
| Body | All-metal, matte black |
| Microphone Size | 9.7 x 2.3 x 2.3 cm |
| Mounting | Stand-mounted (mic clip included) |
| Application | Instruments, drums, live performance, vocals, podcast, narration, interviews |
| Market Year | 2019 |
| Origin | Guangdong, China |

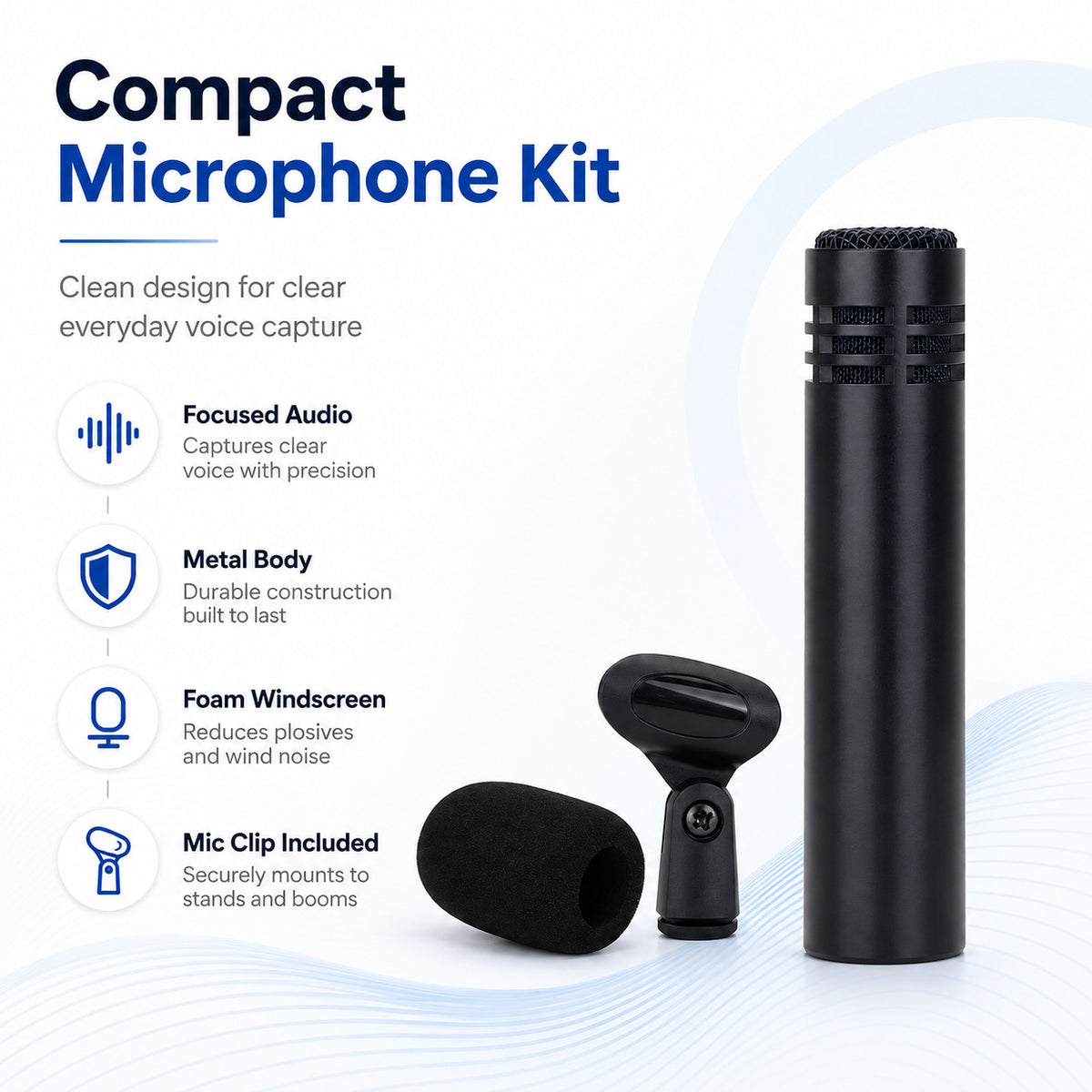

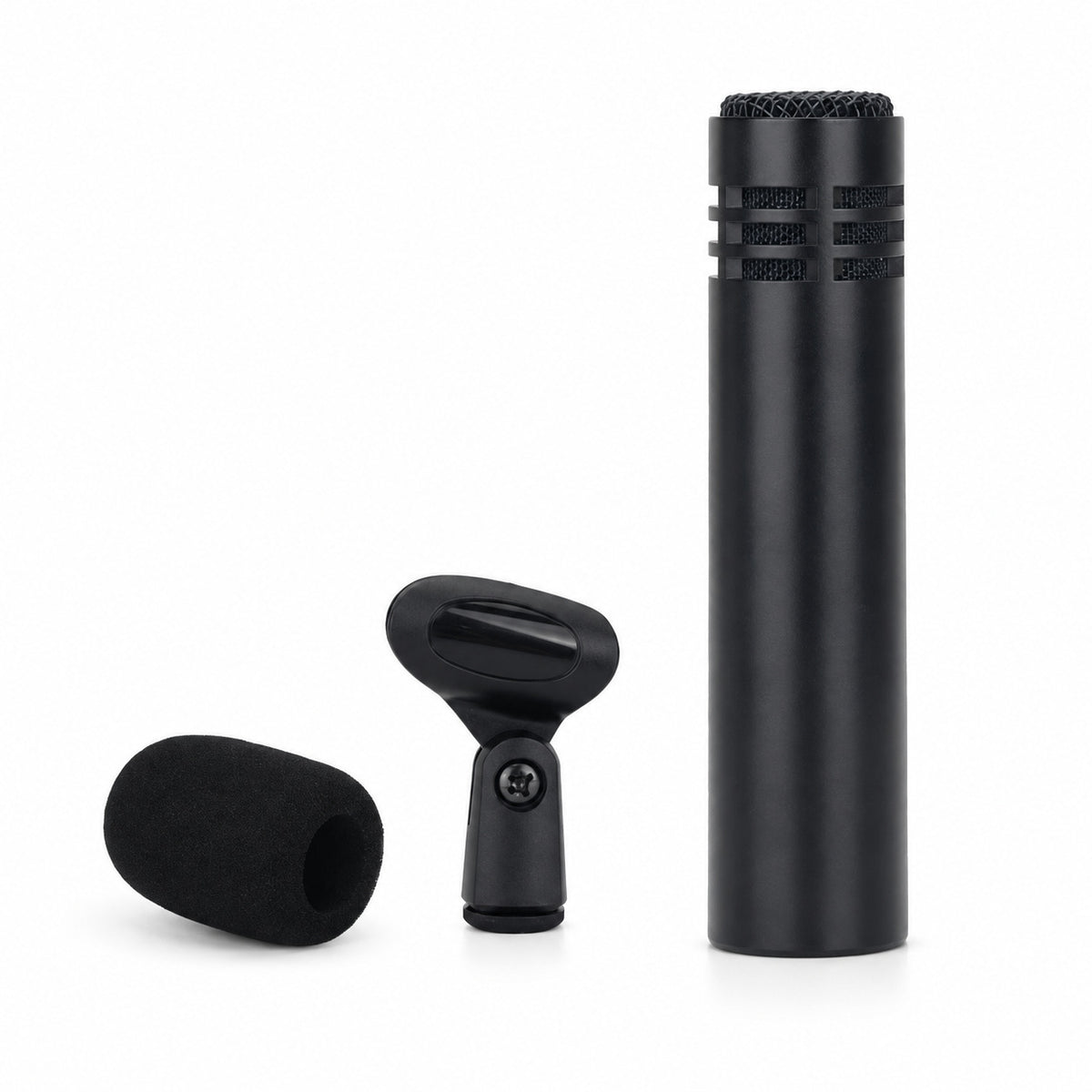

What’s in the Box
Single Microphone
- 1 x E-614 condenser microphone
- 1 x foam windscreen
- 1 x microphone clip

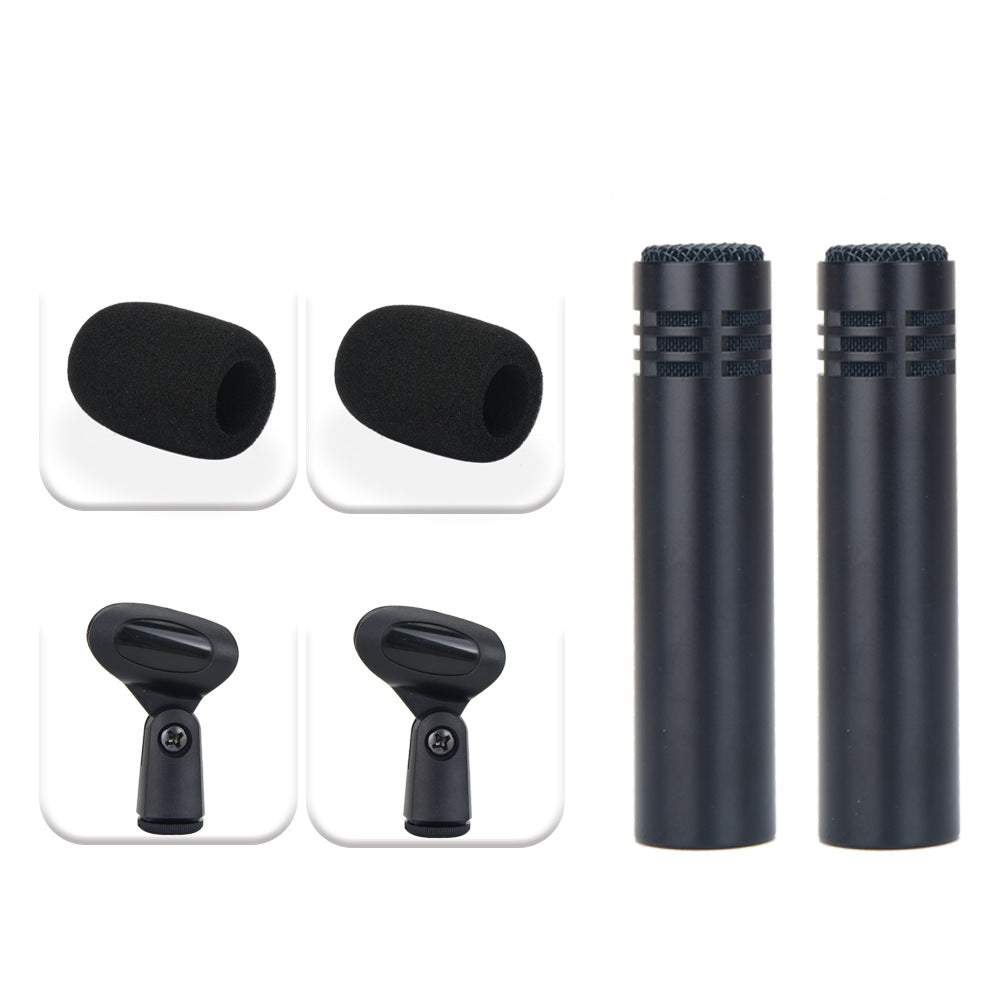

Two-Microphone Set
- 2 x E-614 condenser microphones
- 2 x foam windscreens
- 2 x microphone clips
Care & Usage
- Set the microphone on a stand with the supplied clip and aim the capsule at the sound source; keep it clear of the loudest direct reflections.
- Fit the foam windscreen for outdoor use or close vocal work to control wind noise and plosives.
- Store the microphone in a dry place and avoid dropping it - condenser capsules are sensitive to hard impacts.
Shipping & Returns
See our Shipping Policy for delivery times and our Return Policy for eligibility.
For bulk orders, OEM/ODM customization and wholesale pricing, contact us at shop@micwlaudio.com. Every unit is covered by our 3-Year Warranty and lifetime expert support.
