Description
The Heart of Your Live Sound. Compact, Powerful, Complete.

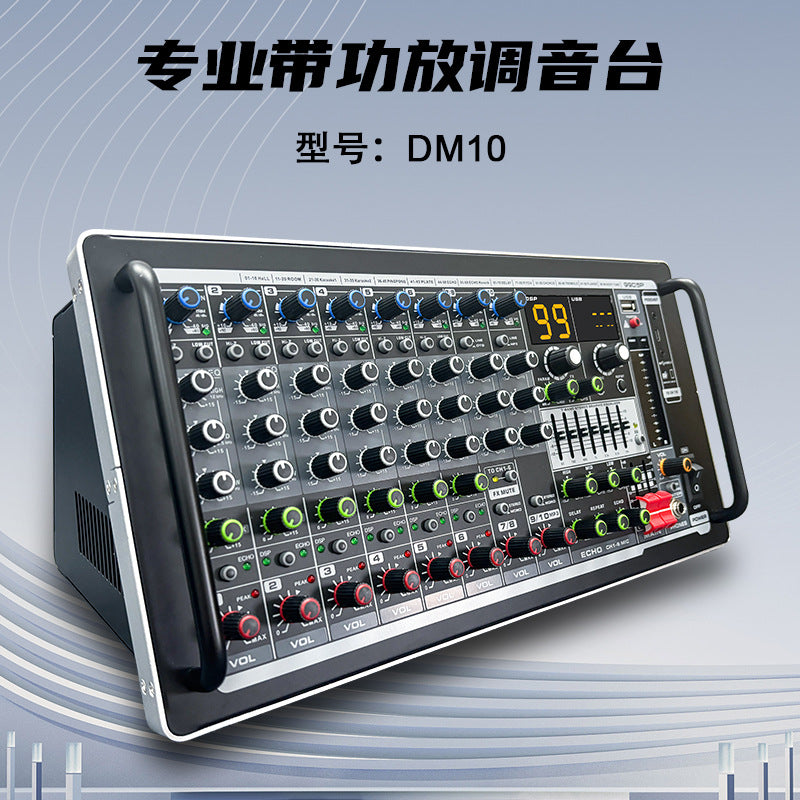

The DM10 8‑Channel Mixer Amplifier combines a professional audio mixer and a high‑output power amplifier in one rack‑mountable unit. With built‑in DSP effects, Bluetooth streaming, USB/SD playback, and 48V phantom power, it’s the all‑in‑one console for bands, venues, weddings, churches, and conferences.
Mixer + Amplifier = Simplified, Powerful Sound
Say goodbye to carting around a separate mixer, amplifier, and effects rack. The DM10 integrates an 8‑input audio mixer, a 500‑watt power amplifier, and a 24‑bit DSP effects processor into a single rugged chassis. Perfect for mobile DJs, traveling bands, churches, and event organizers who need fast setup and reliable performance night after night.
Key Features & Benefits
🎚️ 8‑Channel Input Flexibility
Connect up to 8 microphones or line sources simultaneously. Channels feature individual 3‑band EQ, gain, pan, and effect send controls, giving you precise tonal shaping for vocalists, instruments, and playback devices.
🔊 500W High‑Efficiency Power Amplifier
The built‑in 500‑watt amplifier drives passive speakers with headroom to spare. Whether you're covering a small meeting room or a medium‑sized wedding hall, you’ll get clean, dynamic sound without external power amps.
🎵 Built‑in 24‑Bit DSP Effects
Add professional polish with 16 selectable DSP effects — reverb, delay, chorus, and more. Assign effects independently to each channel and adjust parameters in real time to suit vocals, instruments, or ambiance.
🎧 Bluetooth, USB & SD Card Playback
Stream background music wirelessly via Bluetooth, or play tracks directly from a USB flash drive or SD card. The built‑in media player supports MP3 and WAV formats, with loop and repeat functions perfect for fixed installations.
🎤 +48V Phantom Power for Condenser Mics
A dedicated +48V phantom power switch on the front panel lets you use condenser microphones directly — no need for external preamps or batteries. Ideal for studio‑grade vocal clarity in live settings.
🔧 Rack‑Mountable & Travel‑Ready
The rugged metal chassis includes rack‑mount ears for seamless integration into standard 19‑inch equipment racks. For mobile use, the compact footprint fits easily into a gear case or trunk.
Seamless Connectivity for Any Setup

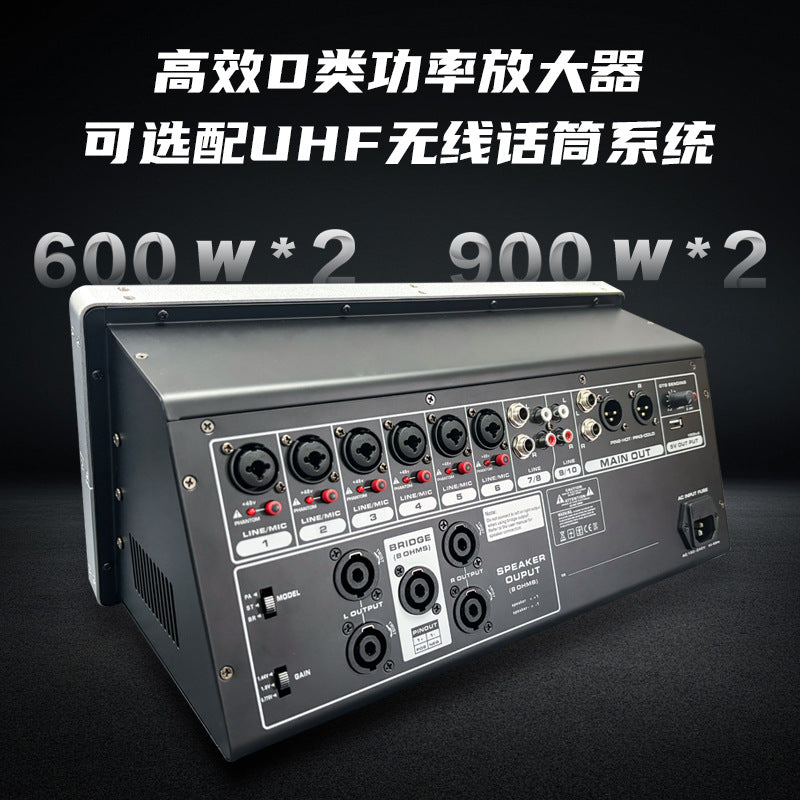

The DM10 is built to connect everything you need in one unit. 6 XLR TRS combo jacks accept both balanced microphone cables and 1/4" instrument cables. A dedicated RCA stereo input lets you hook up external players, while the main L/R speaker outputs (Speakon/ binding post) deliver the amplified signal to your passive speakers. Monitor via the headphone output with independent level control.
Designed for Real‑World Events
- 💒 Weddings & Banquets — One console for mics, background music, and speeches. Easy setup, reliable performance.
- 🎸 Live Bands & Performances — Connect drums, keyboards, guitars, and vocals; add effects on the fly.
- ⛪ Houses of Worship — Clear sermon reinforcement, choir mixing, and hymn playback via USB or Bluetooth.
- 🏢 Conference & Meeting Rooms — Manage multiple presenters, panel discussions, and presentation audio effortlessly.
- 🎤 DJ & Karaoke Events — Built‑in Bluetooth streaming and DSP effects for a lively, engaging party atmosphere.
Technical Specifications
| Model | DM10 |
| Input Channels | 8 (6 Mono XLR/TRS Combo + 2 Stereo Line) |
| Amplifier Power | 2 × 250W @ 4Ω (or 500W Bridged Mono) |
| DSP Effects | 24‑bit, 16 Presets (Reverb, Delay, Chorus, etc.) |
| Phantom Power | +48V (Switchable) |
| Media Playback | Bluetooth 5.0, USB Port, SD Card Slot (MP3/WAV) |
| EQ per Channel | 3‑Band (High, Mid, Low) |
| Speaker Outputs | Speakon + Binding Post (L/R) |
| Rack Mount | Yes (19" Rack Ears Included) |
| Weight | Approx. 8.5 kg / 18.7 lbs |
Why the DM10 is Your All‑in‑One Audio Solution
8
Input Channels
500W
Built‑in Amp
DSP
16 Effects
+48V
Phantom Power
What’s in the Box
✅ DM10 Mixer Amplifier ×1 | ✅ Power Cable ×1 | ✅ Rack‑Mount Ears (Pre‑attached) ×2 | ✅ User Manual ×1
