Description
CA6400 4-Channel 800W Class D Digital Power Amplifier — 6400W RMS 1U Rack Mount
$1,099.00
$1,499.00
| In Stock
| SKU: CA6400
🔥 8500W Peak Touring Power Amplifier — Four channels of Class D digital power in a slim 1U all-metal rack chassis: 4×800W @ 8Ω (4×1600W @ 4Ω) — summing to 3200W RMS @ 8Ω / 6400W RMS @ 4Ω. SpeakON + XLR I/O, switchable Mono / Stereo / Bridge modes, smart variable-speed cooling, and full DC, short, thermal & overcurrent protection — engineered for concert hall, live stage and tour sound.
Product Overview
The MiCWL CA6400 4-Channel Class D Digital Power Amplifier is engineered for concert halls, live stages, tour rigs and fixed installations that demand serious headroom in a compact footprint. Four independent channels deliver 800W @ 8Ω or 1600W @ 4Ω each, summing to 3200W RMS @ 8Ω / 6400W RMS @ 4Ω with peaks up to 8500W. The slim 1U all-metal rack chassis fits any standard 19" touring or install rack, while switchable Mono, Stereo and Bridge modes let you drive full-range tops, bi-amped mains, or high-power subwoofers from a single 1U unit.
Why Choose the CA6400 — 5 Core Selling Points
6400W RMS Class D Power
4×800W @ 8Ω / 4×1600W @ 4Ω; peaks at 8500W — full headroom for large-format PA tops, line arrays and subwoofer arrays.
Slim 1U All-Metal Chassis
Lightweight 1U rack design fits any 19" touring rack or fixed installation — saves space without sacrificing durability.
Pro SpeakON + XLR I/O
Balanced XLR inputs, locking SpeakON speaker outputs, switchable Mono / Stereo / Bridge modes for any system topology.
Multi-Layer Protection
DC, short-circuit, thermal, overheat and overcurrent protection with per-channel Protect / Clip / Signal LEDs.
Smart Variable-Speed Cooling
High-efficiency SMPS + temperature-controlled fans run cool and quiet — show after show, hour after hour.
Key Features & Benefits
⚡ 4-Channel Class D Power with 8500W Headroom
Four independent Class D amplifier channels each deliver 800W @ 8Ω or 1600W @ 4Ω, producing 3200W RMS @ 8Ω / 6400W RMS @ 4Ω in stereo — with peaks up to 8500W for transient-heavy program material. Bridge any two channels to drive high-power subwoofers or full-range cabinets on the most demanding live shows.
📦 1U Metal Rack Chassis — Built for the Road

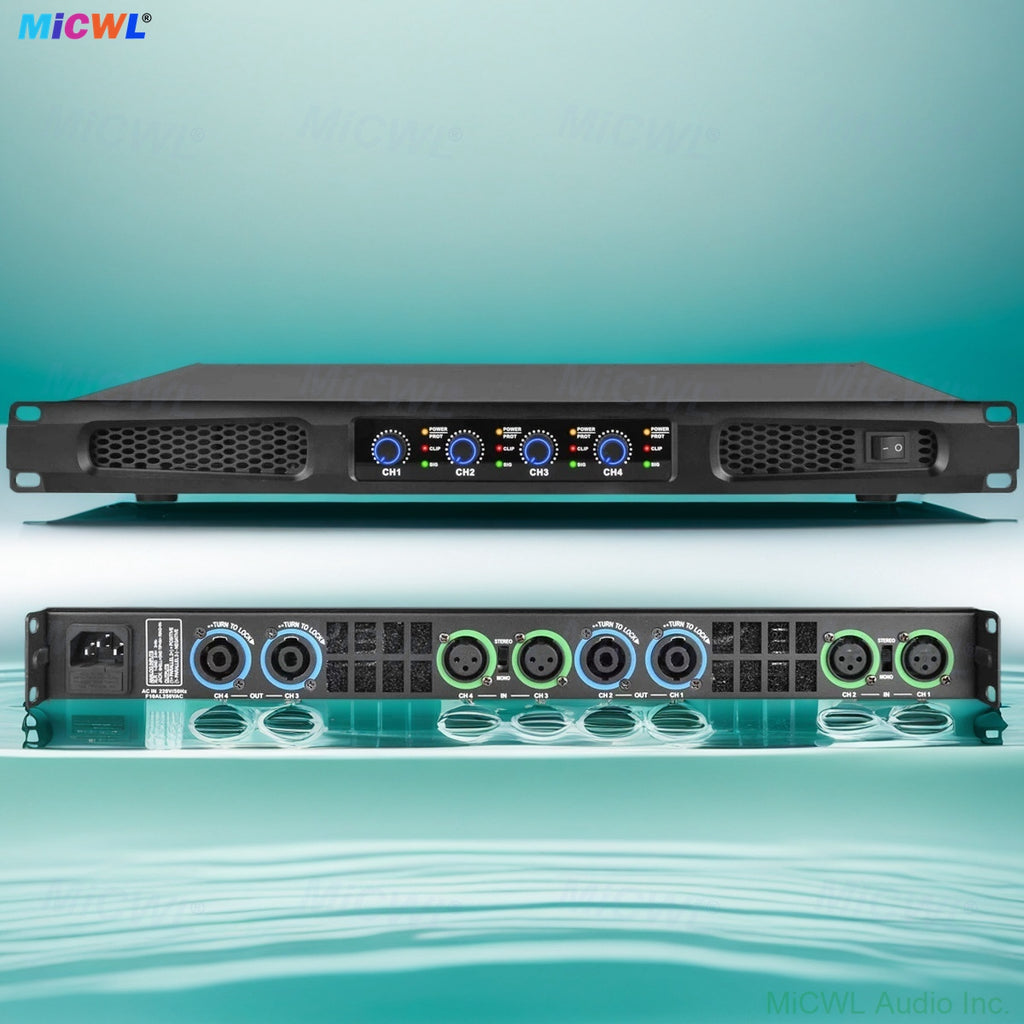

The slim 1U all-metal rack-mount chassis is built for daily transport. Front-panel individual channel level controls and Protect / Clip / Signal LEDs give you instant feedback at front of house, while the rugged steel enclosure stands up to truck-pack, flight-case and fixed-install environments.
🔌 SpeakON + XLR I/O — Universal System Compatibility
Balanced XLR line-level inputs pair with Neutrik-compatible SpeakON speaker outputs for secure, locking connections. Switchable Mono / Stereo / Bridge modes let you reconfigure the amp for 2-channel tops, bi-amped mains, mono subs, or a 4-zone distributed system — all from a single 1U unit.
🛡️ Full-Stage Protection Circuitry
Built-in DC, short-circuit, thermal, overheat and overcurrent protection guard both the amplifier and your speakers. Per-channel Protect / Clip / Signal LED indicators make troubleshooting fast, and the amplifier automatically mutes outputs on fault detection — protecting your rig and your audience.
🌬️ Class D Efficiency + Smart Variable-Speed Cooling
A high-efficiency switch-mode power supply (SMPS) and Class D output stage deliver serious power in a lightweight, cool-running package. Variable-speed fans ramp up only when needed, keeping the amp quiet for theater and broadcast — yet cool enough for outdoor festival duty in summer heat.
Ideal Application Scenarios
Technical Specifications
| Model | MiCWL CA6400 |
|---|---|
| Topology | Class D Digital Power Amplifier with SMPS |
| Channels | 4 independent channels (Mono / Stereo / Bridge switchable) |
| Output Power @ 8Ω (per ch.) | 800W RMS |
| Output Power @ 4Ω (per ch.) | 1600W RMS |
| Total RMS @ 8Ω | 3200W (4×800W) |
| Total RMS @ 4Ω | 6400W (4×1600W) |
| Peak Output | 8500W |
| Frequency Response | 20 Hz – 20 kHz (±0.5 dB) |
| THD+N | ≤ 0.05% @ 1 kHz, 1W |
| Signal-to-Noise Ratio | ≥ 100 dB (A-weighted) |
| Damping Factor | ≥ 300 @ 8Ω |
| Inputs | Balanced XLR (per channel) |
| Outputs | SpeakON-compatible speaker outputs (per channel pair) |
| Front Panel | 4× Level knob, 4× Protect / Clip / Signal LED, power switch |
| Protection | DC, Short, Thermal, Overheat, Overcurrent, Clip limiter |
| Cooling | Variable-speed forced-air fan (front-to-rear) |
| Chassis | 1U all-metal rack-mount, 19" standard |
| Power Supply | AC 110V / 220V switchable, 50–60 Hz |
| Ideal For | Concert hall, live stage, house of worship, theater, tour sound, fixed install |
| Warranty | 1 Year (Manufacturer: MiCWL Audio Inc.) |
What's in the Box
- ✅ 1× CA6400 4-Channel Class D Digital Power Amplifier
- ✅ 1× IEC Power Cable (region-specific)
- ✅ 4× SpeakON-compatible speaker connectors (where applicable)
- ✅ 1× User Manual & Warranty Card
Frequently Asked Questions
Q: How much power does the CA6400 deliver per channel?
A: 800W @ 8Ω or 1600W @ 4Ω per channel. All four channels driven: 3200W RMS @ 8Ω / 6400W RMS @ 4Ω, peaking at 8500W.
Q: Is the CA6400 suitable for touring and live stage?
A: Yes — slim 1U all-metal rack chassis, Class D SMPS, smart cooling and full protection make it ideal for touring rigs, fixed installs, concert halls and live stage sound.
Q: What inputs and outputs does the CA6400 have?
A: Balanced XLR line-level inputs paired with Neutrik-compatible SpeakON speaker outputs, switchable Mono / Stereo / Bridge modes.
Q: Can I bridge channels to drive subwoofers?
A: Yes — pair any two channels in Bridge mode to drive high-power subwoofers or full-range cabinets.
Q: Does MiCWL offer custom amplifier configurations?
A: Yes — for OEM/ODM, custom wattage configurations or rack pre-wiring, contact us at shop@micwlaudio.com.
