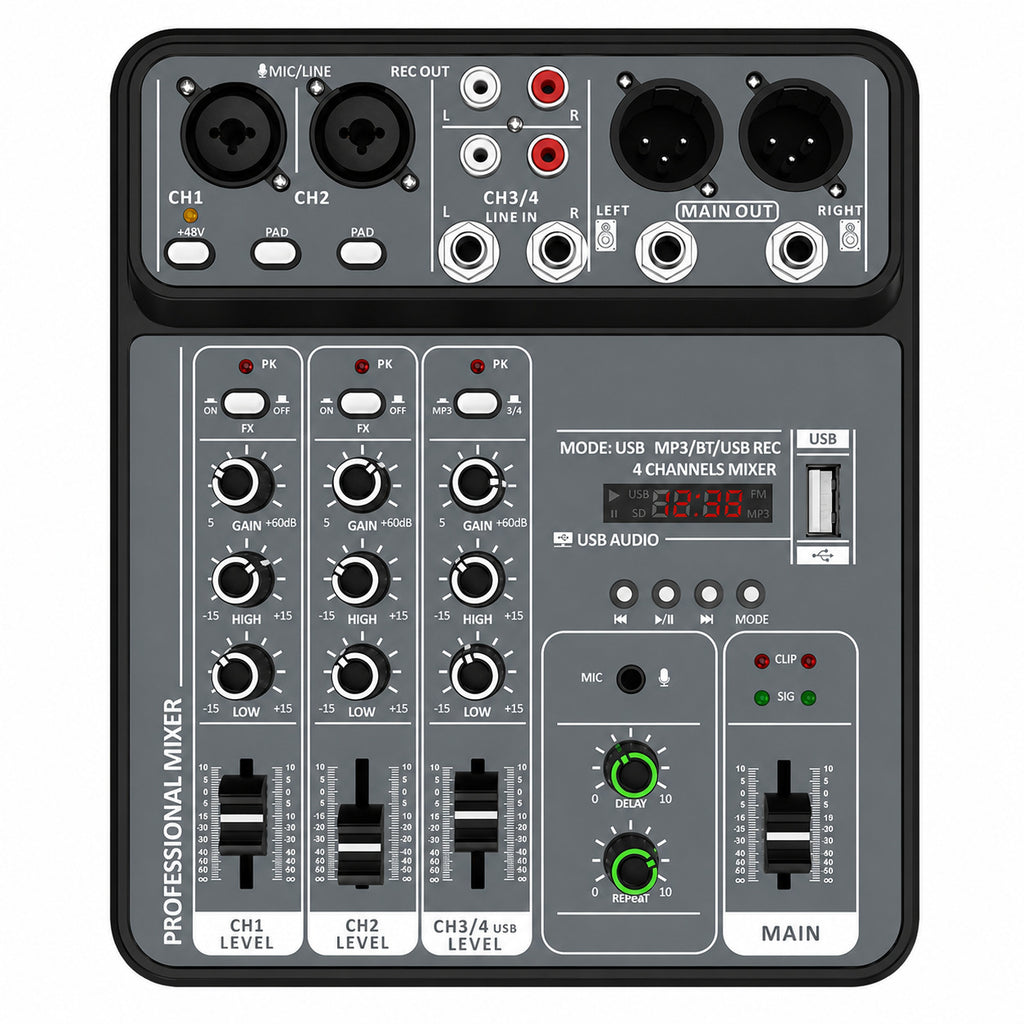

4-Channel USB Audio Mixer with Bluetooth, 48V Phantom Power & FX

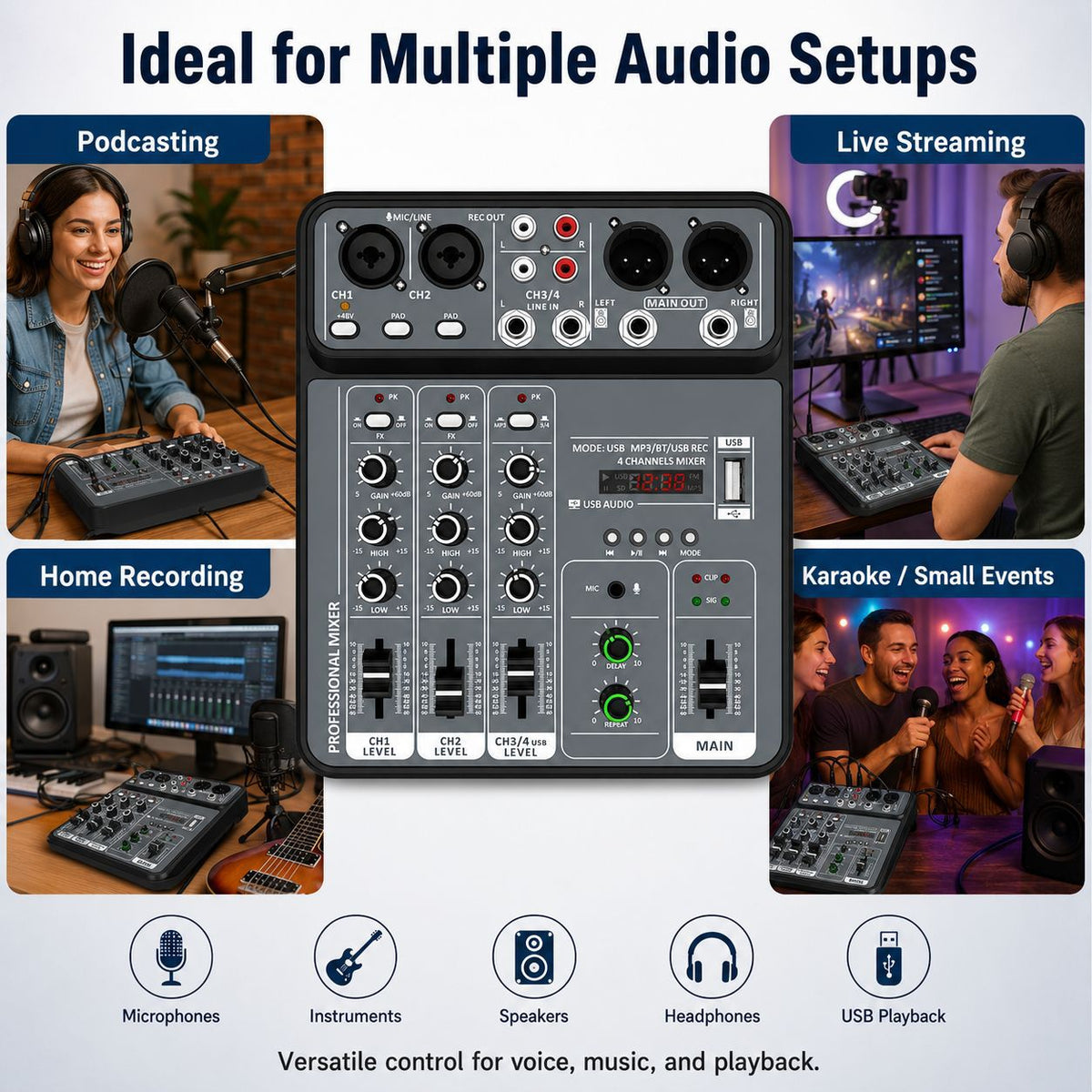

A four-channel mixer that fits on a desk and still covers the whole signal chain: two mic/line combo inputs with 48 V phantom power, a stereo line channel, a built-in USB audio interface, Bluetooth and USB playback, and MP3 recording to a USB stick. Each channel gets its own gain, two-band EQ and fader, and a MAIN fader sets the overall level, so podcasting, streaming, home recording and small live events all run from one compact box.

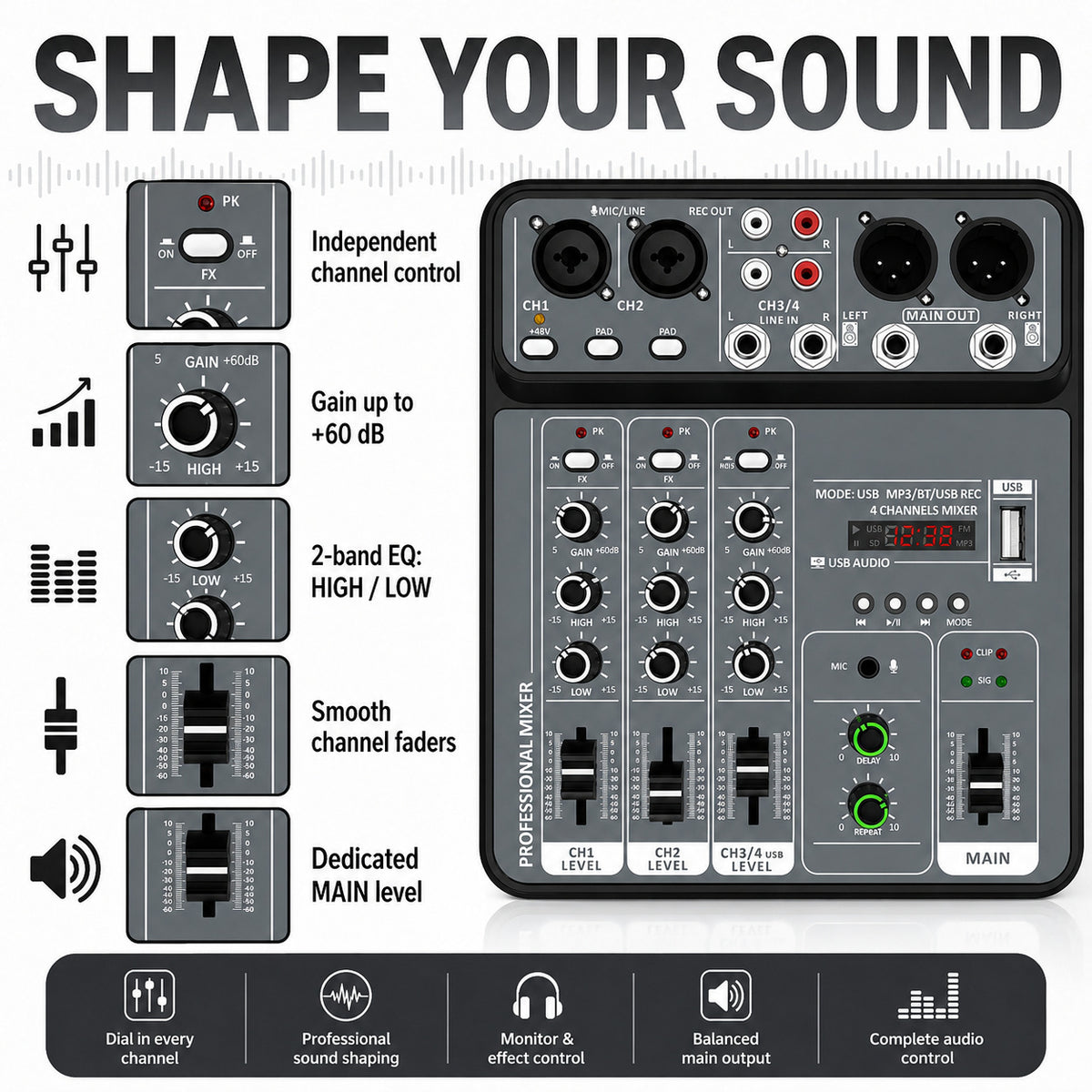

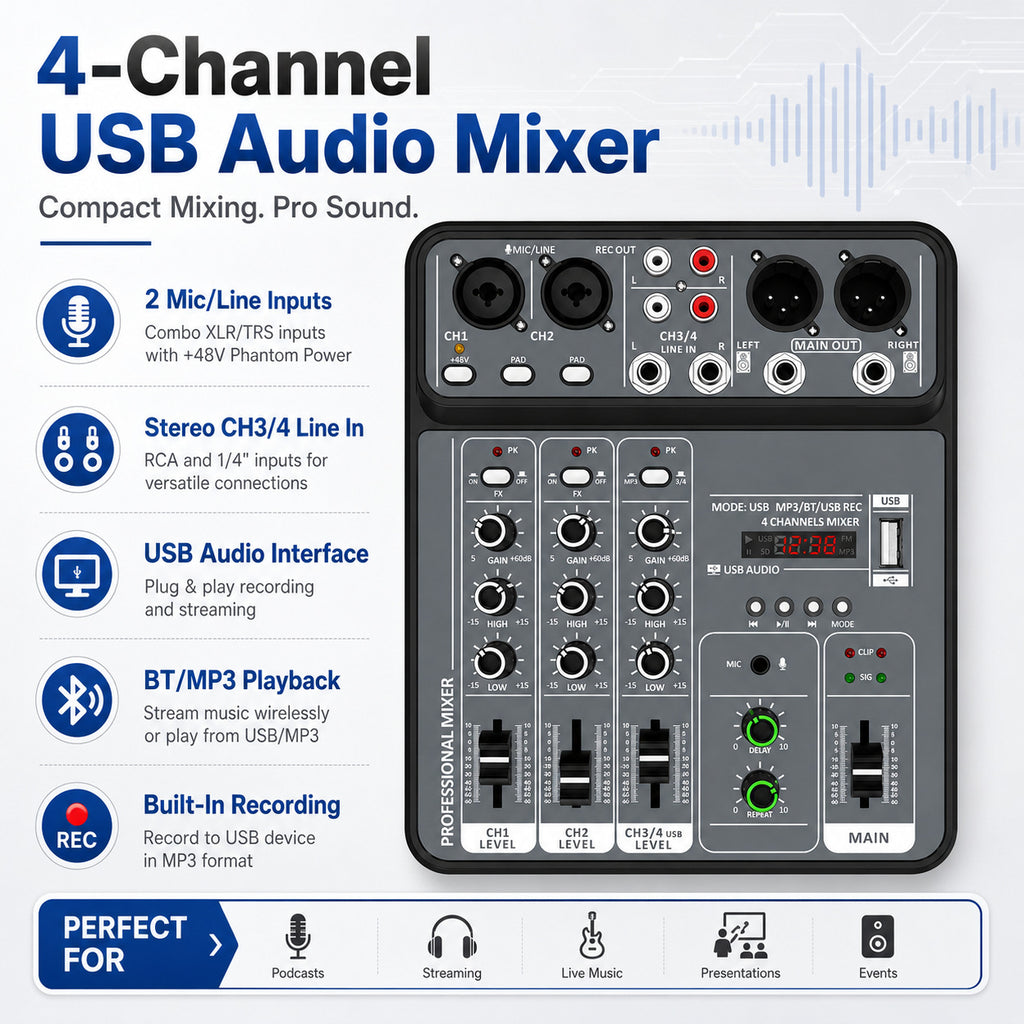

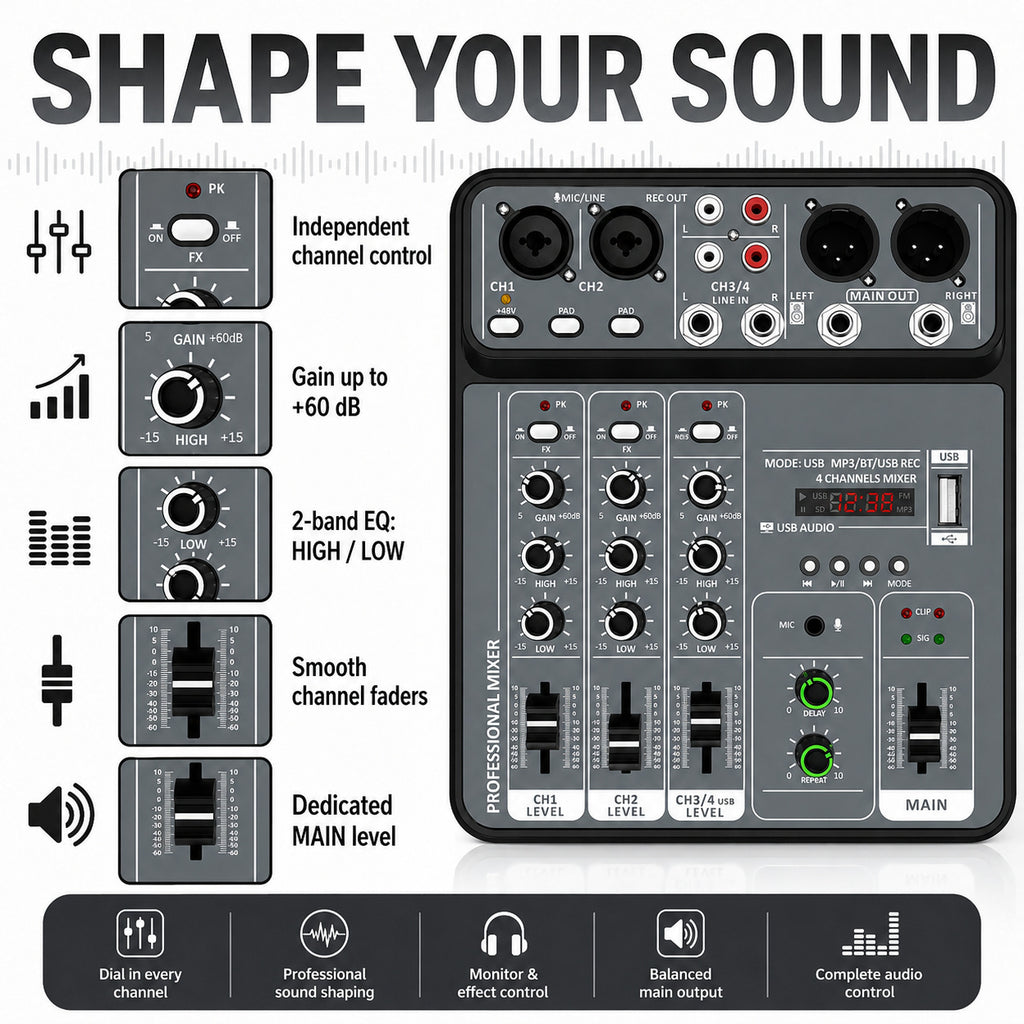

Key Features
- 2 Mic / Line Inputs with +48 V — Combo XLR/TRS jacks on CH1 and CH2 accept a condenser or dynamic mic, a DI box or a line source, with switchable phantom power and PAD.
- Stereo CH3/4 Line In — RCA and 1/4 inch inputs take a keyboard, media player or phone, so four sources can be mixed at once.
- USB Audio Interface — Plug the mixer into a computer for recording and streaming without a separate interface.
- Bluetooth / MP3 Playback and USB Recording — Stream from a phone over Bluetooth, play from a USB drive, and record the mix straight to a USB device as MP3.
- Built-In FX — A per-channel FX switch feeds the onboard effect section, with DELAY and REPEAT knobs to dial in reverb-style depth.

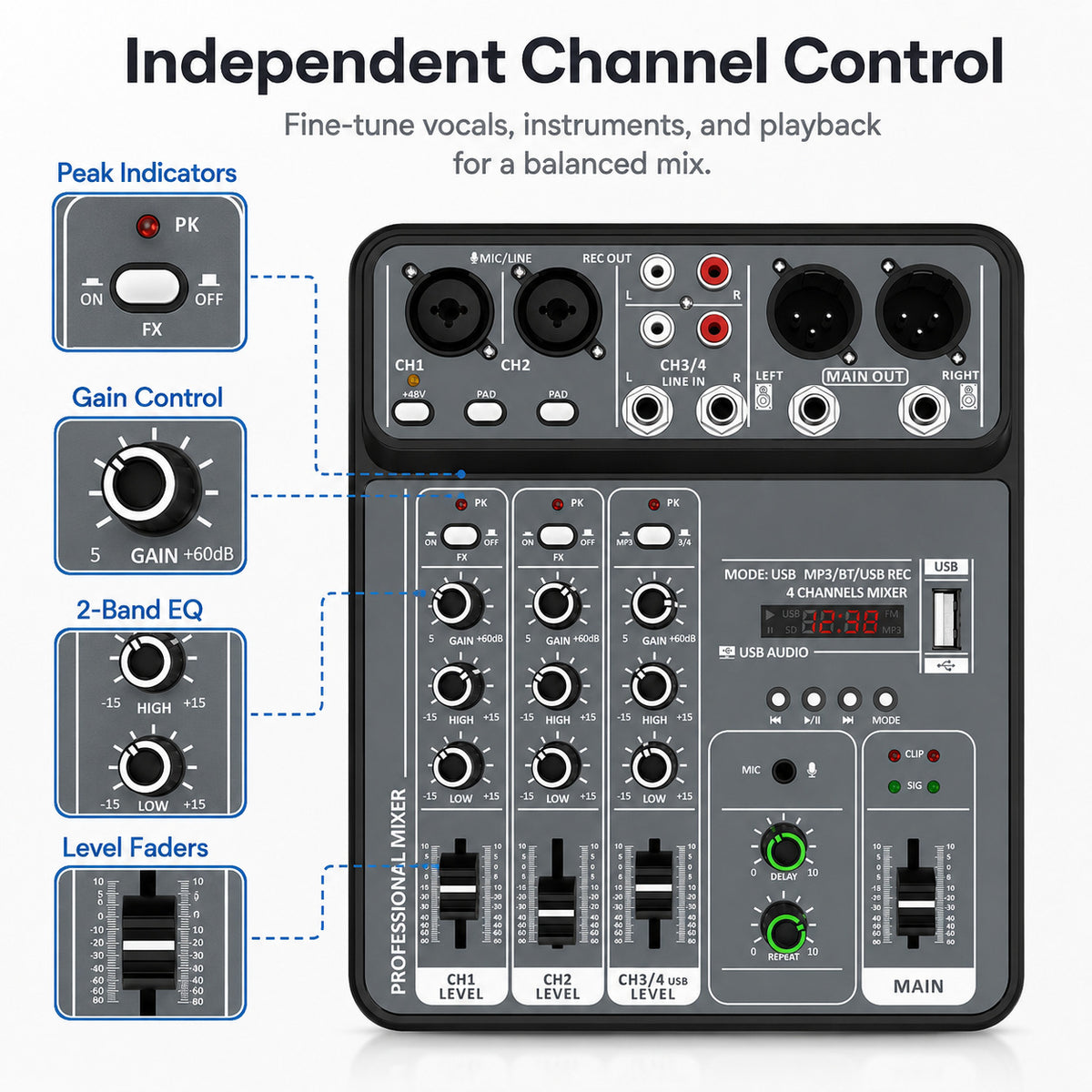

- Gain, 2-Band EQ and Faders — Up to +60 dB of mic gain, +/-15 dB HIGH and LOW shaping and a smooth fader per channel give you a full mix surface in a desk-sized box.
Specifications
| Channels | 4 - CH1/CH2 mic-line combo (XLR/TRS), CH3/4 stereo line |
| Phantom Power | +48 V switchable on CH1/CH2 |
| Inputs | 2 x XLR/TRS combo, CH3/4 L/R on RCA and 1/4 inch jacks, USB |
| Outputs | MAIN OUT L/R, REC OUT (RCA) |
| EQ | 2-band per channel: HIGH / LOW, +/-15 dB |
| Gain | Mic input +10 dB to +60 dB; line input -20 dB to +20 dB |
| Effects | Channel FX on/off with DELAY and REPEAT controls |
| USB | USB audio interface (record / stream) + USB drive playback + MP3 recording |
| Wireless | Bluetooth playback (MODE: USB / MP3 / BT / USB REC) |
| Monitoring | PFL, AFL, Solo and stereo monitoring |
| Frequency Response | 80 Hz - 16 kHz |
| Level Control | Independent faders for CH1, CH2, CH3/4 USB plus a dedicated MAIN fader |
| Indicators | Per-channel PK peak LEDs; CLIP / SIG on the main bus |
| Product Size | 20.5 x 16.5 x 4.0 cm |
| Packed Weight | 600 g |
| Packed Size | 22 x 18 x 6 cm |
| Origin | Guangdong, China |
What’s in the Box
- 1 x 4-channel USB audio mixer
Care & Usage
- Leave +48 V switched off for dynamic microphones and line sources, and enable it only for condenser microphones that need phantom power.
- If a PK indicator lights on CH1 or CH2, engage the PAD switch or lower the gain knob before bringing the fader up.
- Keep the channel and MAIN faders out of the top of the CLIP range; use the MAIN fader for overall level and the channel faders for balance.
- Keep the unit dry and do not open the chassis - there are no user-serviceable parts inside.
