36-Unit Digital Wireless Conference Microphone System
Square Desktop Gooseneck Mics | President & Delegate Mode | MiCWL A10M Series | 100m Range
Product Overview

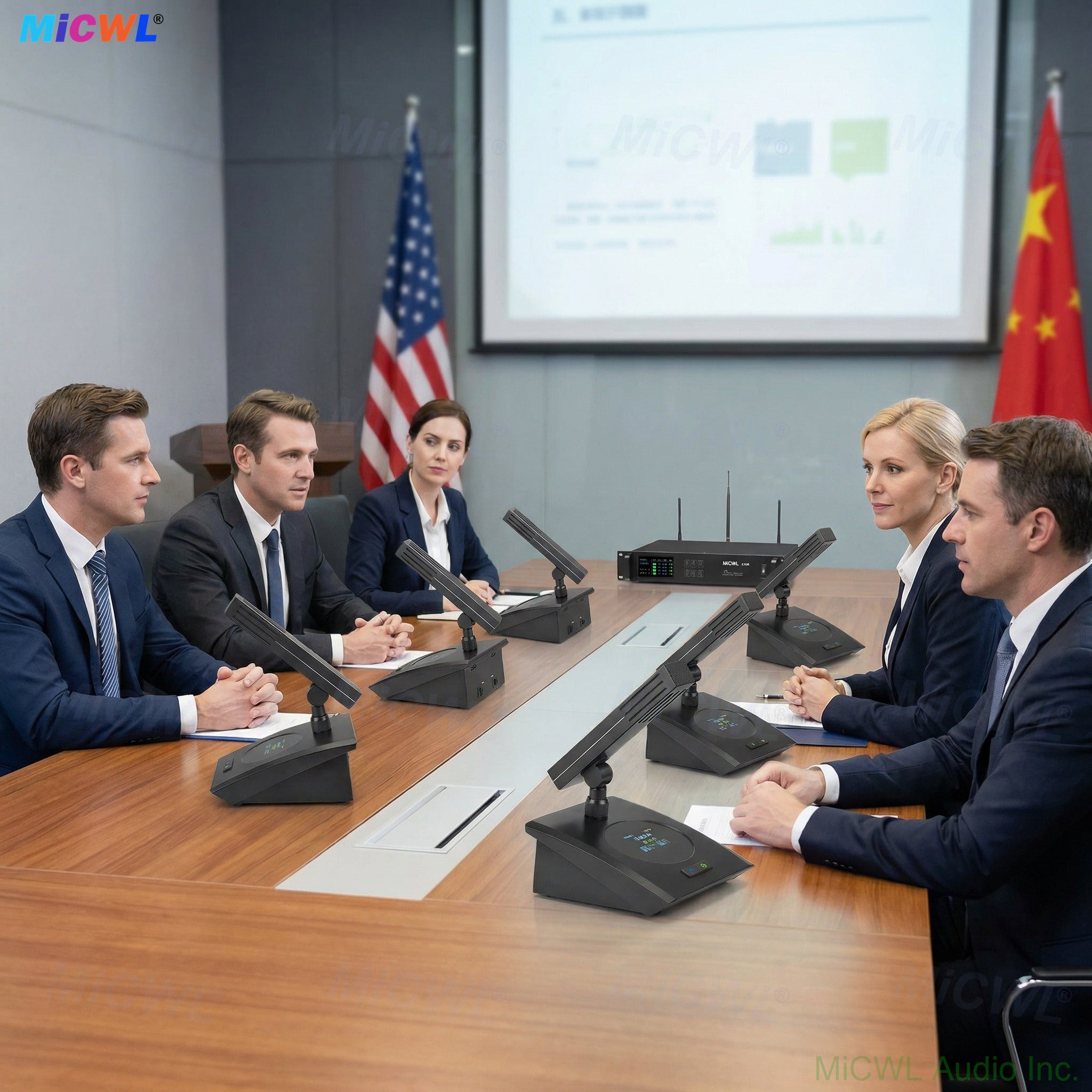

The MiCWL 36-Unit Digital Wireless Conference Microphone System is a professional-grade conference audio solution built around the A10M Series Digital Discussing Controller. Designed for government agencies, corporate boardrooms, press conferences, and large meeting venues, this system eliminates the clutter of traditional wired setups by adopting advanced digital wireless radio processing for both audio and control signals. Featuring 36 square desktop gooseneck microphones with high-sensitivity condenser capsules, flexible multi-mode discussion protocols, and robust anti-interference technology, it delivers crystal-clear communication for every participant.

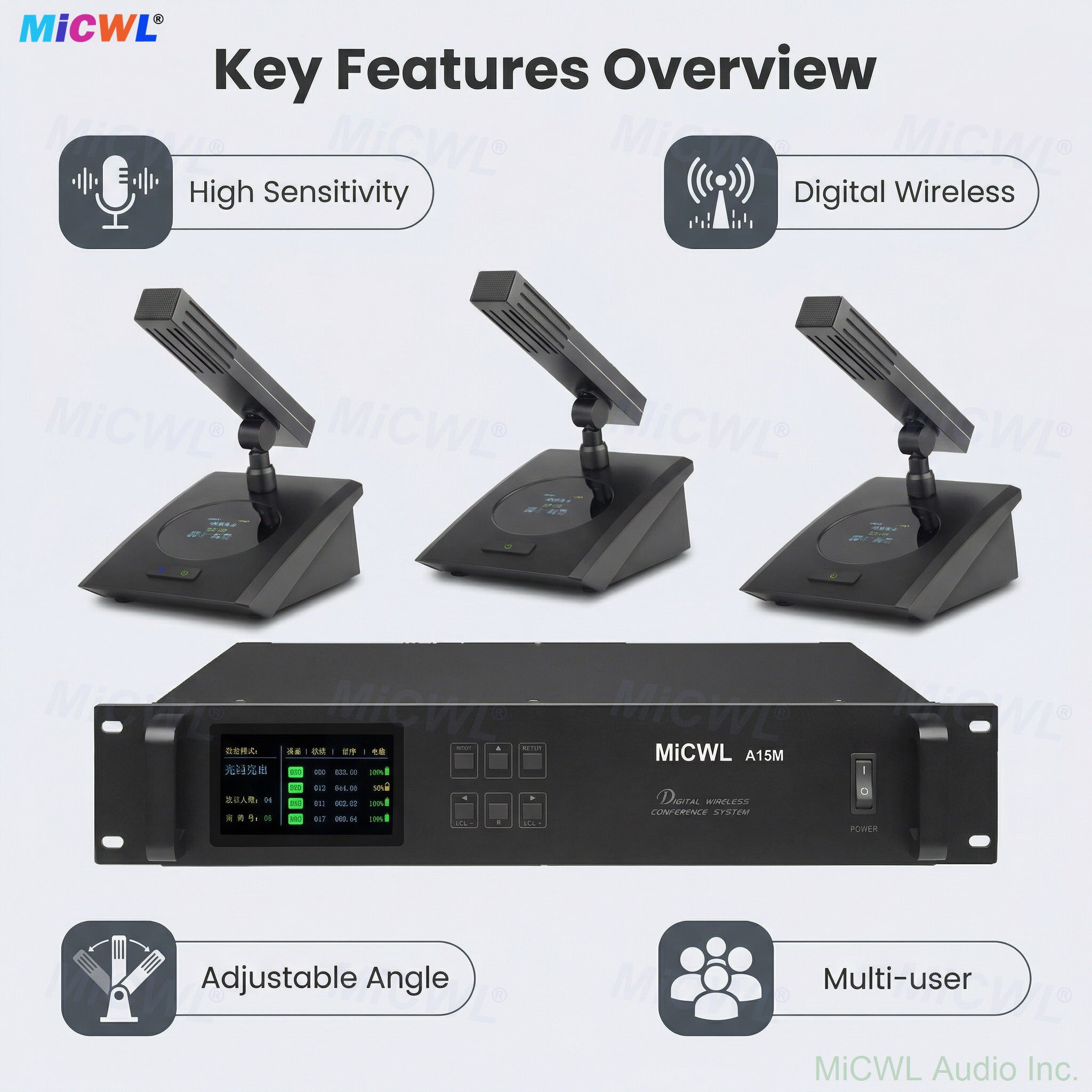

Key Features & Benefits
🔹 36-Unit Complete System with Unlimited Scalability

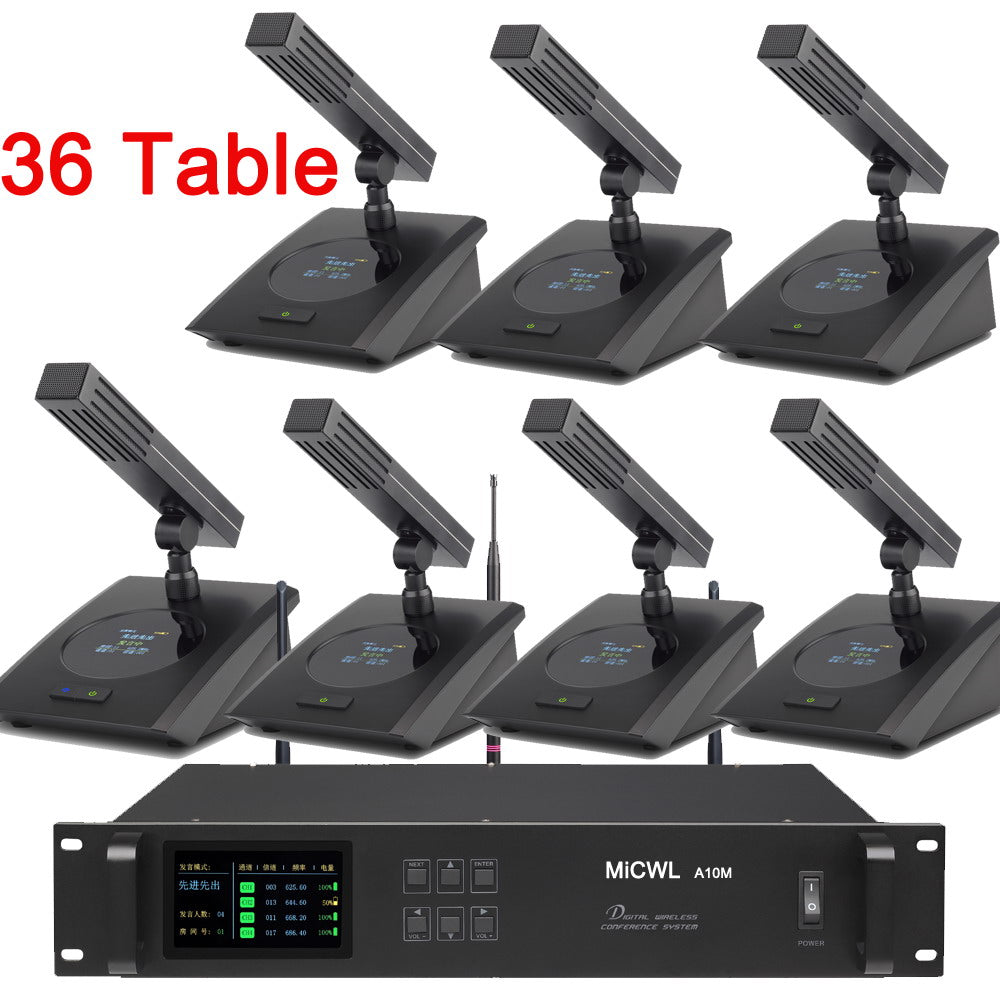

The package includes 1 × MiCWL A10M Wireless Host and 36 × A115 Desktop Gooseneck Microphones—configurable as 1 Chairman + 35 Delegates, or all 36 as Delegates. A single A10M Host supports up to 300 units simultaneously, allowing you to scale the system seamlessly for the largest conference halls, parliamentary chambers, and international summit venues.
🔹 President / Chairman Priority Control & Multi-Mode Discussion
The Chairman unit features priority override and cut-off functions—the chair can mute or take over any speaking delegate at any time. Three selectable speech modes are built in: FIFO (First-In-First-Out), President-Dedicated, and Limited-Time speaking, supporting 1–4 concurrent speakers. These protocols ensure orderly, efficient discussions even in high-stakes political or corporate settings.

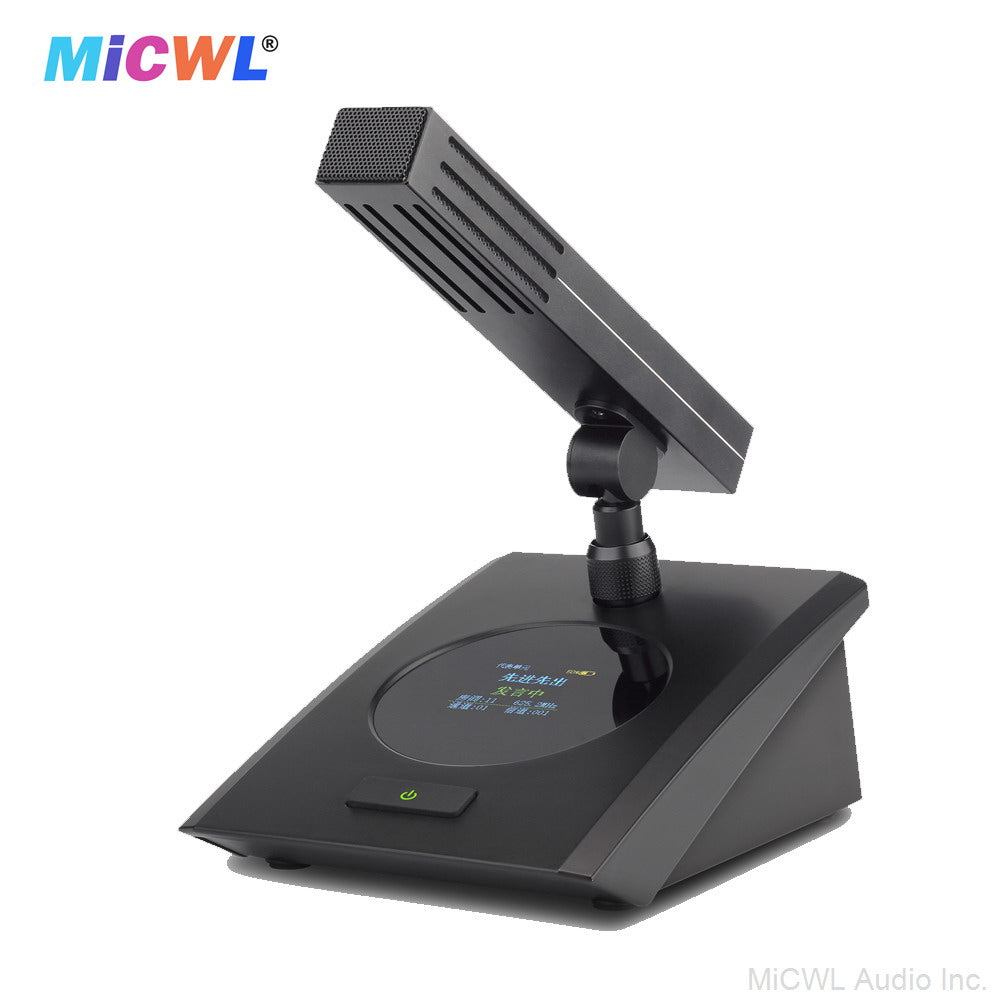

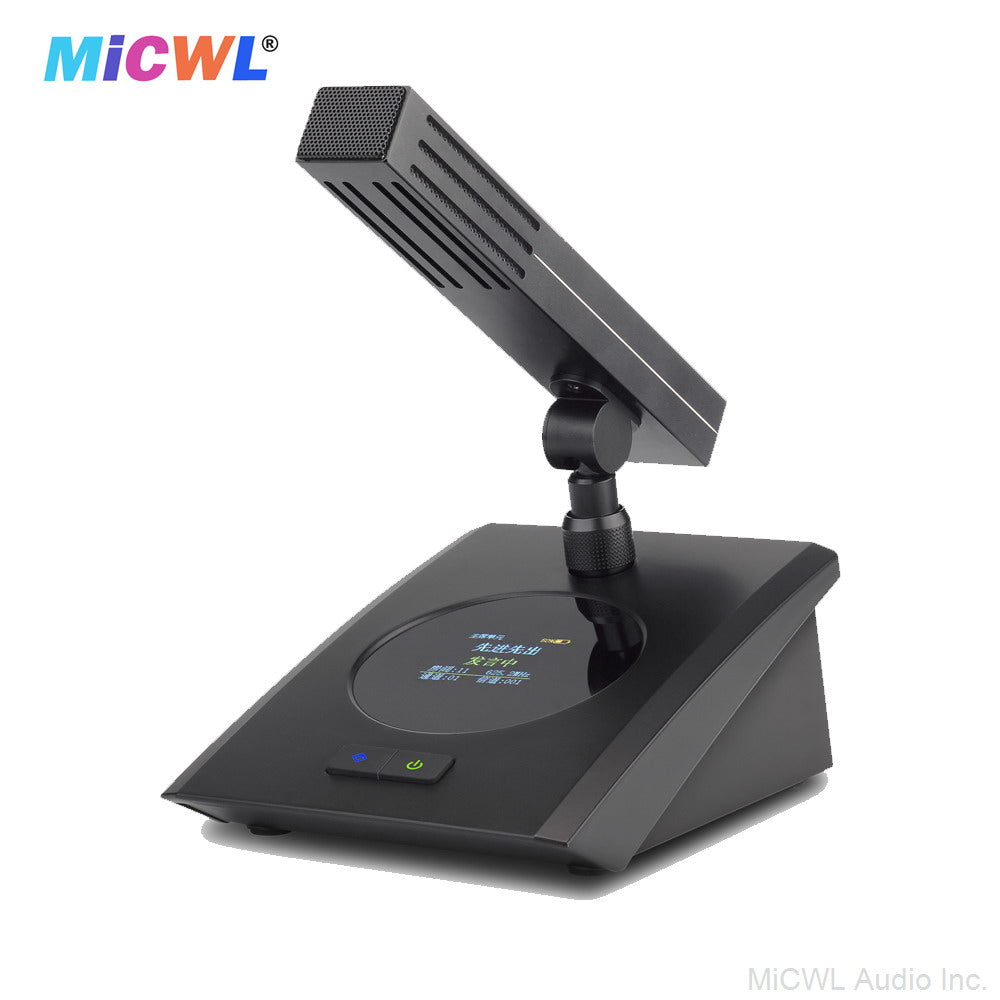

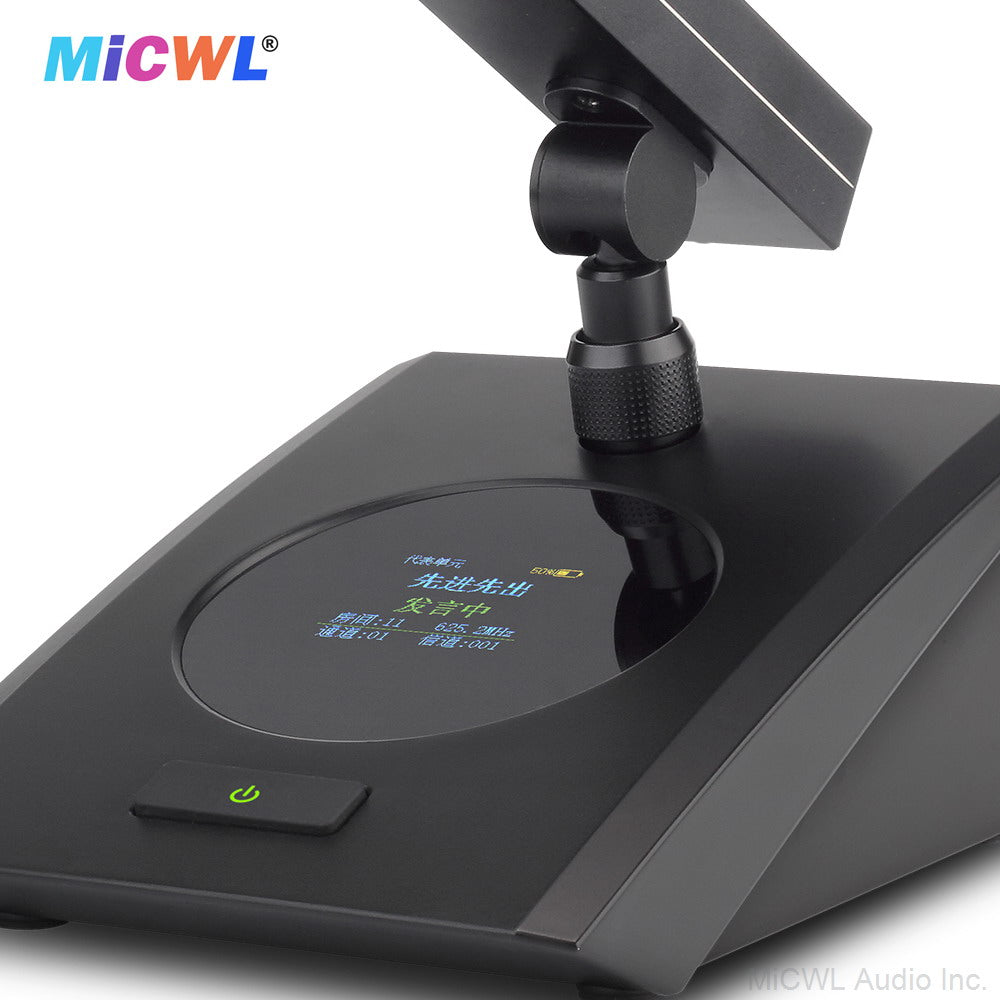

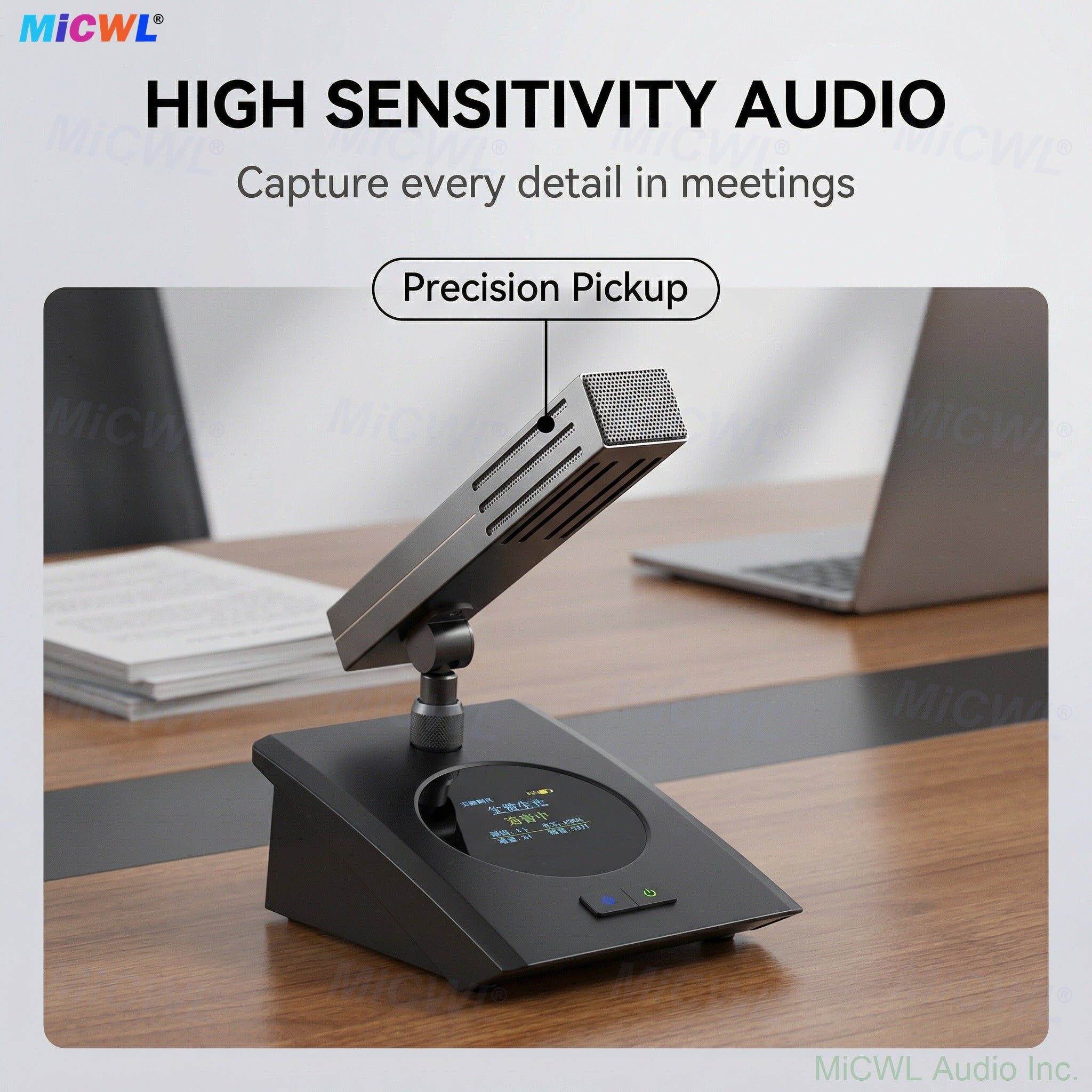

🔹 Square Gooseneck Design with High-Sensitivity Condenser Mic
Each desktop unit features a flexible square gooseneck tube that rotates 360° for personalized positioning. The high-sensitivity condenser capsule with cardioid directionality captures speech with precision, while the built-in professional noise reduction algorithm effectively filters out ambient noise and electromagnetic interference from mobile phones.
🔹 Encrypted Digital Wireless Transmission up to 300 Meters
The system employs digital radio processing for both audio and control signals. Scientific IP and ID code design combined with CPU multi-stage error correction and encryption scrambling prevents cross-channel interference and blocks mobile phone electromagnetic interference, maintaining rock-solid signal stability across the full 100-meter working range (communication range: 200–300 m).

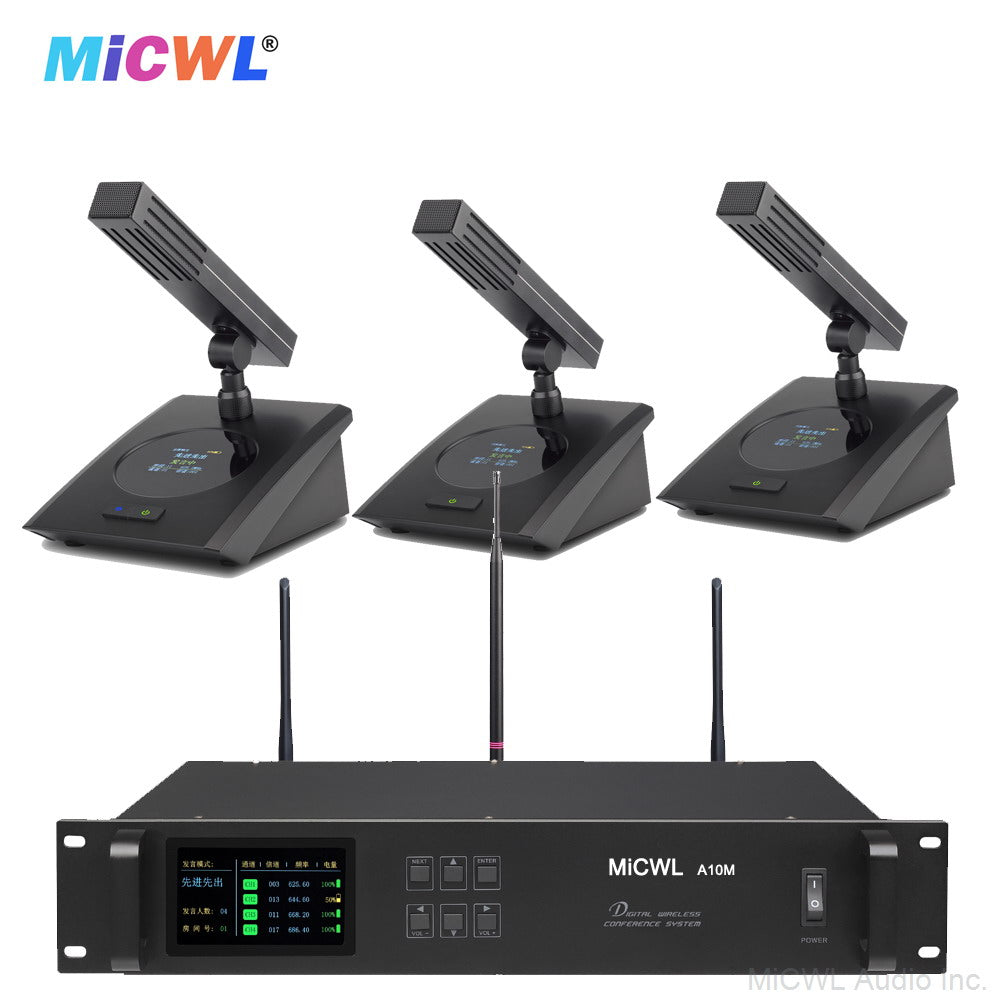

🔹 Professional Rack-Mountable Host with Full Monitoring & Control

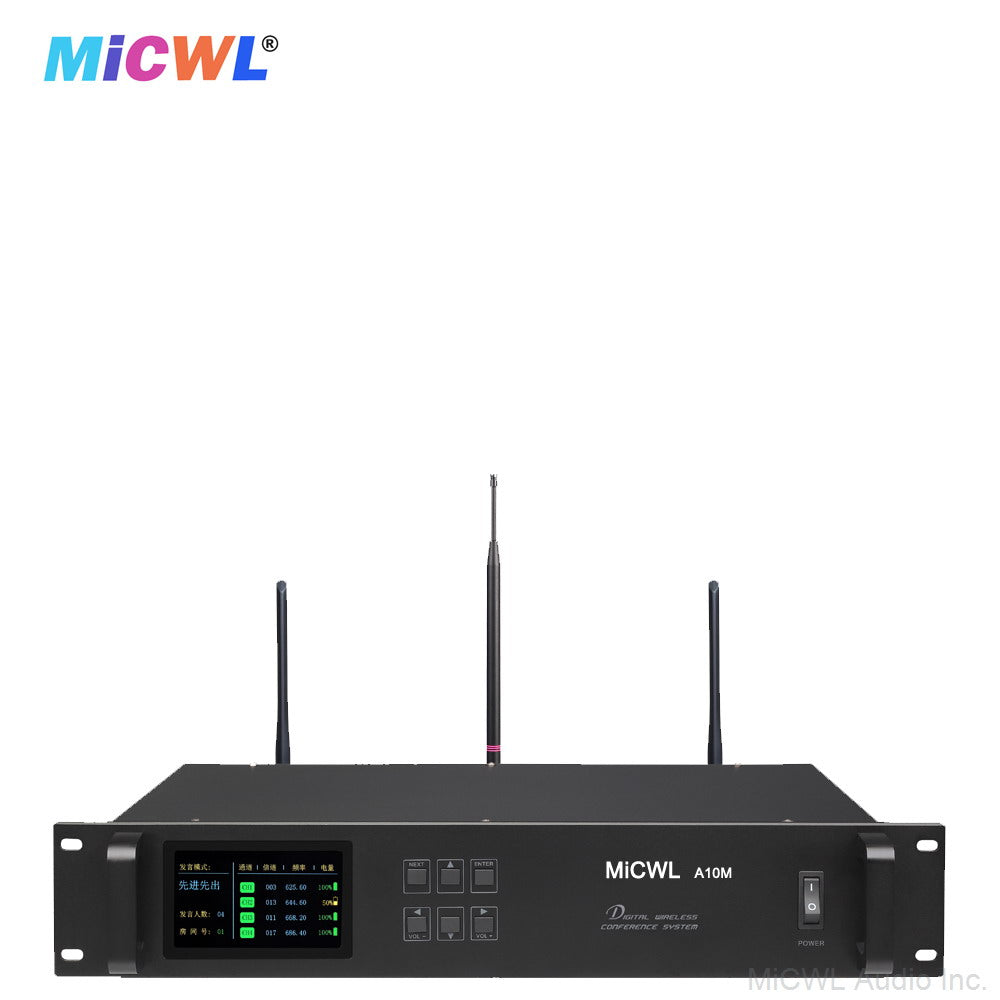

The A10M Host features a large 240×128 dot-matrix LCD screen with hierarchical menu navigation. It provides real-time display of speaker count, channel order, position, and unit power data. Built-in EQ, volume control, speech mode selection, and IP/ID communication adjustment give the meeting administrator full command. The host is designed in a 2U 19-inch rack-mountable chassis, ideal for permanent AV installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| System Configuration | 1 × A10M Host + 36 × A115 Desktop Mics |
| Max. Scalability | Up to 300 units per Host |
| Microphone Type | Condenser, cardioid (single direction) |
| Mic Sensitivity | -45±2 dB @ 1 kHz |
| Frequency Response | 20 Hz – 18 kHz |
| Working Range | Approx. 100 meters (communication: 200–300 m) |
| Speech Modes | FIFO / President-Dedicated / Limited-Time (1–4 speakers) |
| Host Display | 240×128 dot-matrix LCD with hierarchical menu |
| S/N Ratio (Host) | > 90 dB |
| T.H.D. (Host) | < 0.05% |
| Host Power Supply | DC 12 V – 17 V, Power: 6.5 W |
| Unit Power Supply | DC 4.5 V (1.5 V AA × 3 batteries) |
| Host Dimensions | 480 × 370 × 85 mm (2U 19" rack-mountable) |
| Unit Dimensions | 190 × 125 × 63 mm, Weight: 850 g |
| Certification | CE/FCC Certified |
| Warranty | 3 Year (Manufacturer: MiCWL Audio Inc.) |
What‘s in the Box
- ✅ 1× MiCWL A10M Wireless Host
- ✅ 36× MiCWL A116 Desktop Gooseneck Mics
- ✅ 1× AC-DC Adapter (100V–250V Universal)
- ✅ 1× User Manual
Ideal Applications
🛡️ Authorized Dealer Warranty: This product is brand new in original packaging, sold by MiCWL Audio Inc. as an authorized dealer. Covered by a 3-Year Manufacturer Warranty. CE Certified. Buy with confidence.
📩 Have Questions or Need a Custom Configuration?
If you have any questions about this 36-unit conference system, need a different Chairman/Delegate mix, or would like to inquire about custom / bulk orders—our team is ready to assist you.
