Description

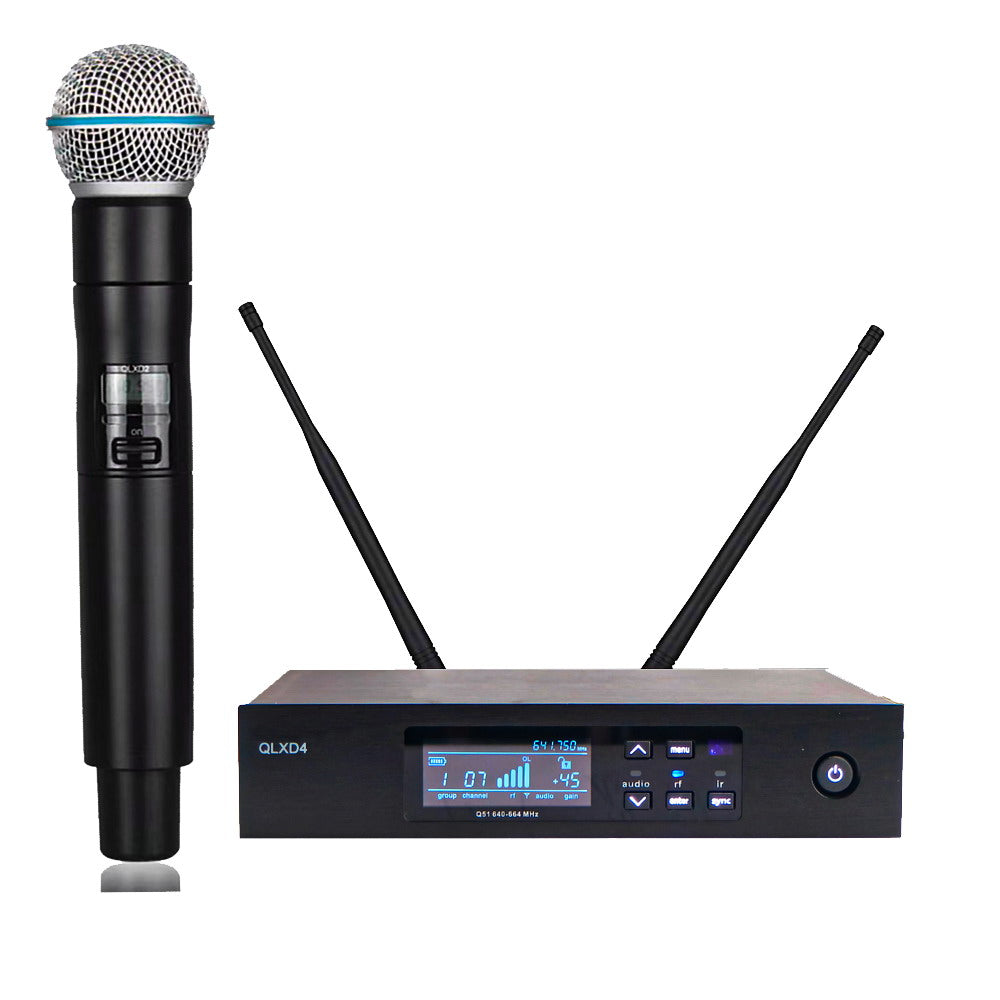

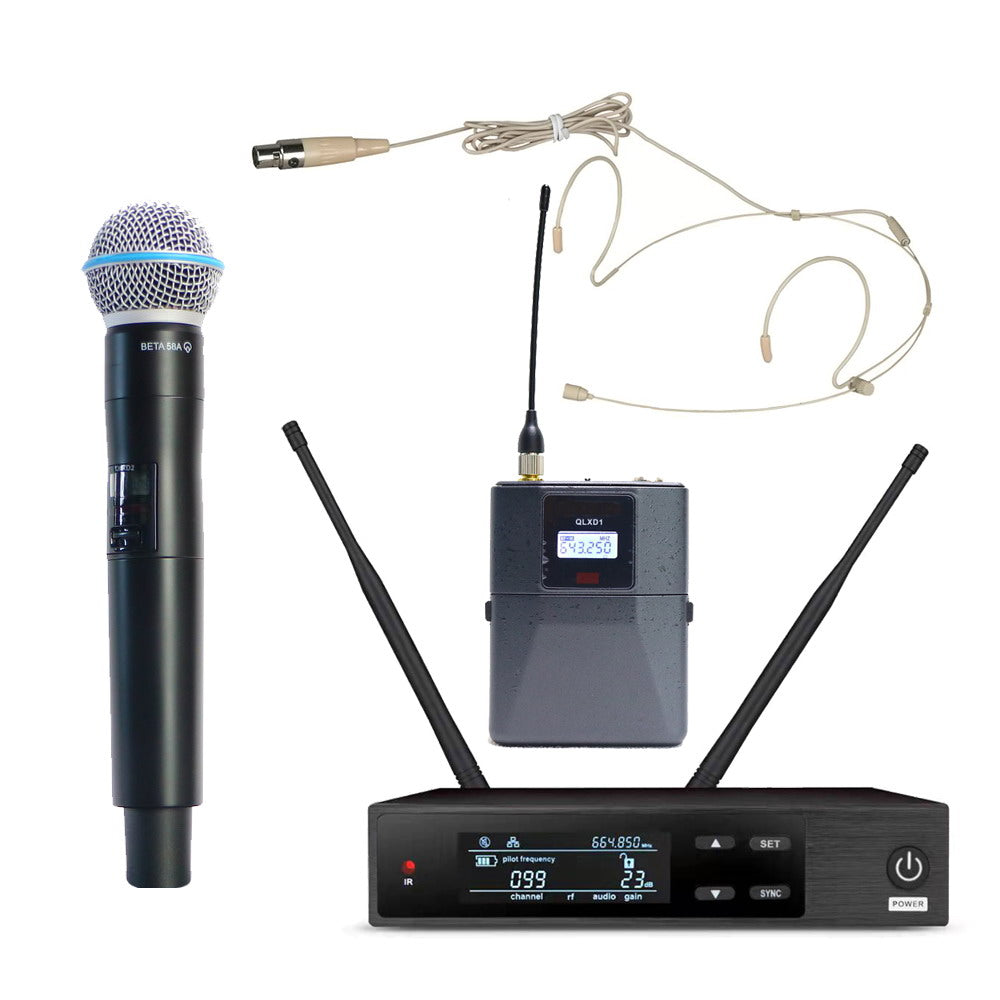

QLXD24 / Beta58 Wireless Microphone System with Extra Bodypack
24-Bit Digital Audio | 100-Channel UHF | True Diversity | Beta58 + （Extra QLXD1 Bodypack）
Product Overview
The QLXD4 Beta58 Wireless Microphone System （with Extra Bodypack） is a professional-grade digital wireless combo designed for live performances, presentations, houses of worship, and music venues. This package includes the QLXD4 digital single-channel receiver, QLXD2 handheld transmitter with Beta58A supercardioid capsule, and an additional QLXD1 beltpack bodypack transmitter as a backup or alternative configuration. Featuring transparent 24-bit/48 kHz digital audio with over 120 dB dynamic range, digital predictive True Diversity reception, 100 selectable UHF channels, and AES-256 encryption, this system delivers uncompromising wireless performance in even the most challenging RF environments.
What‘s Included in This Combo
- ✅ 1× QLXD4 Digital Wireless Receiver
- ✅ 1× QLXD2 Handheld Transmitter (Beta58A)
- 🎁 1× QLXD1 Bodypack Transmitter (Extra)
- ✅ 2× 1/2 Wave Antennas
- ✅ 1× Universal AC-DC Power Adapter
Key Features & Benefits
🔹 QLXD4 Digital Receiver – True Diversity with Advanced Networking

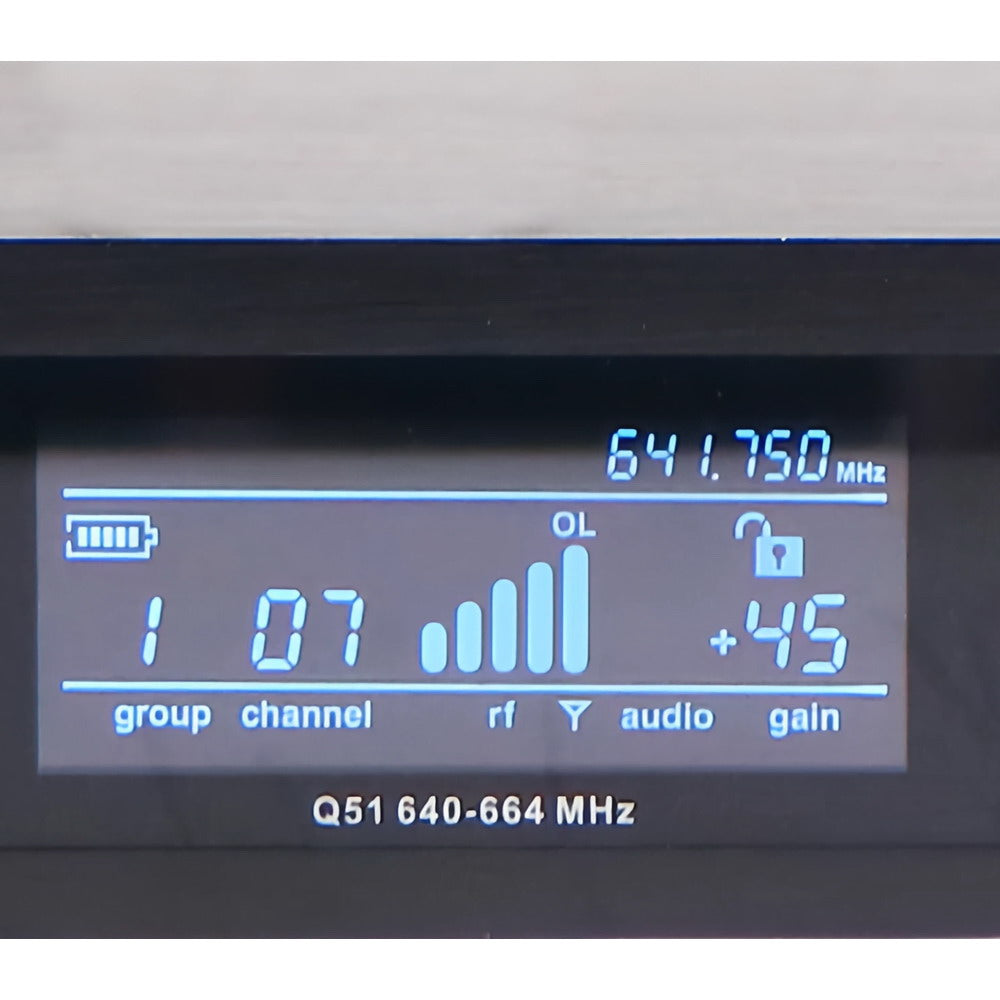

The half-rack QLXD4 receiver features digital predictive switching True Diversity with four-antenna signal reinforcement, multi-level high-frequency filtering, and short circuit protection. With 100 selectable channels across 50 MHz bandwidth (640–690 MHz), automatic channel scan, and one-touch infrared sync, finding and assigning clear frequencies is effortless. Ethernet networking enables streamlined multi-receiver setup, network channel scanning, and remote control via Shure Wireless Workbench software or the ShurePlus Channels iOS app — plus integration with AMX and Crestron third-party control systems.[reference:0]
🔹 QLXD2 Beta58A Handheld – Legendary Vocal Performance
The QLXD2 handheld transmitter is equipped with the renowned Beta58A supercardioid dynamic capsule, purpose-built for lead vocalists. Its supercardioid polar pattern tightly focuses on the performer's voice while suppressing off-axis noise and feedback. The interchangeable capsule design offers compatibility with the full range of Shure microphone cartridges. Anti-switch impact protection safeguards downstream equipment, while the backlit LCD displays battery status, group/channel, and frequency at a glance.[reference:1][reference:2]

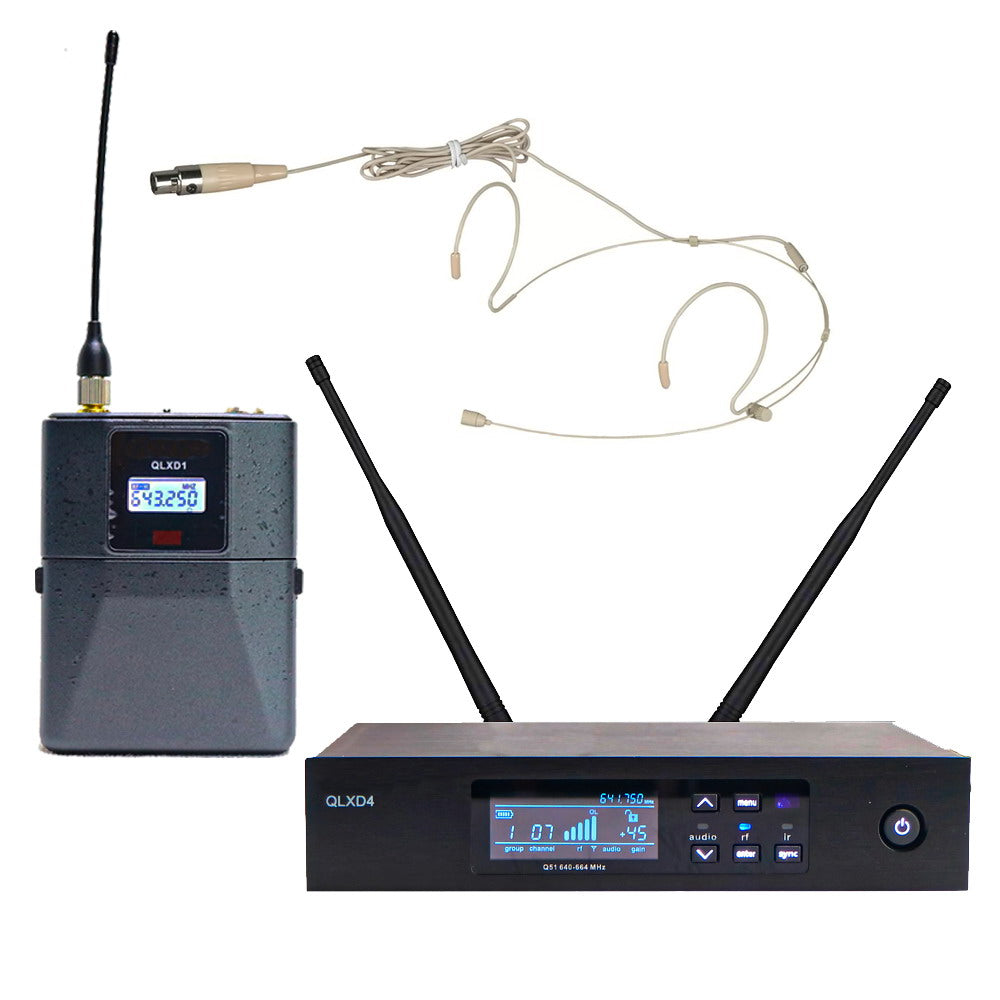

🔹 Extra QLXD1 Bodypack Transmitter – Maximum Versatility
This combo includes an additional QLXD1 beltpack bodypack transmitter at no extra charge — perfect as a backup unit or for presenters who prefer a lavalier or headset configuration. Compatible with a wide selection of Shure lavalier, headset, and instrument microphones via its 4-pin TA4M mini connector. The rugged all-metal bodypack features the same 24-bit digital audio quality, 120 dB dynamic range, AES-256 encryption, and IR sync functionality as the handheld, ensuring seamless integration into your existing QLX-D workflow.[reference:3]
🔹 24-Bit / 48 kHz Digital Audio with 120 dB Dynamic Range
QLX-D delivers transparent 24-bit digital audio with an ultra-wide dynamic range exceeding 120 dB — eliminating the need for transmitter gain adjustments entirely. The extended, flat frequency response of 20 Hz – 20 kHz (microphone dependent) captures every sonic detail, while ultra-low 2.9 ms latency ensures perfect synchronization for live performances. Proprietary gain ranging automatically optimizes the system's dynamic range for any input source.[reference:4]
🔹 Rugged Construction, Extended Battery Life & Secure Transmission
All components feature rugged all-metal construction — machined aluminum handheld and bodypack, steel receiver chassis — built to withstand demanding touring and installation environments. Transmitters deliver up to 9 hours with AA alkaline batteries or up to 10 hours with optional Shure SB900 lithium-ion rechargeable batteries, with accurate remaining runtime displayed in hours and minutes. AES-256 encryption ensures secure, interference-free wireless transmission for sensitive applications. Selectable RF output power (1 mW or 10 mW) allows optimization between range and battery life.[reference:5][reference:6]
Technical Specifications
| Parameter | Specification |
|---|---|
| System Configuration | QLXD4 Receiver + QLXD2/Beta58A Handheld + QLXD1 Bodypack (Extra) |
| Audio Quality | 24-bit / 48 kHz digital, DQPSK modulation |
| Dynamic Range | > 120 dB |
| System Latency | 2.9 ms |
| Frequency Response | 20 Hz – 20 kHz (mic dependent), Beta58A: 50 Hz – 16 kHz |
| UHF Frequency Band | 640 – 690 MHz |
| Channels / Bandwidth | 100 channels / 50 MHz bandwidth |
| Diversity Type | True Diversity (digital predictive switching) |
| Beta58A Polar Pattern | Supercardioid |
| Max. Input Level (Handheld) | 145 dB SPL (1 kHz at 1% THD) |
| Operating Range | 100 m (330 ft) typical; up to 200 m open area |
| Battery Life (Transmitters) | Up to 9 hrs (AA alkaline) / Up to 10 hrs (SB900 Li-Ion) |
| RF Output Power | Selectable: 1 mW or 10 mW |
| Encryption | AES-256 |
| Receiver S/N Ratio | > 70 dB(A) |
| Receiver Distortion | < 1% |
| Receiver Audio Outputs | XLR balanced (+10 dB) + 1/4" instrument output |
| Receiver Power Supply | DC 12–17 V, 1A |
| Receiver Dimensions | 1.63" × 7.75" × 5.94" (41 × 197 × 151 mm), 1/2U rack-mountable |
| Handheld Dimensions | 10.1" × 2.0" (256 × 51 mm), 12.2 oz (347 g) |
| Bodypack Dimensions | 3.39" × 2.56" × 0.91" (86 × 65 × 23 mm), 0.30 lbs |
| Warranty | 1 Year (Manufacturer: MiCWL Audio Inc.) |
Ideal Applications
📩 Have Questions or Need a Custom Configuration?
If you have any questions about this QLXD4 Beta58 wireless combo with extra bodypack, need a different transmitter configuration, or would like to inquire about custom / bulk orders — our team is ready to assist you.
