BG600 6-Channel 1200W Bluetooth Audio Mixer
USB MP3 | 48V Phantom Power | 5-Band EQ | 16 Digital Effects | Monitor & PFL | CE/FCC Certified
Product Gallery
Click images to enlarge. Actual product may vary slightly.
Product Overview

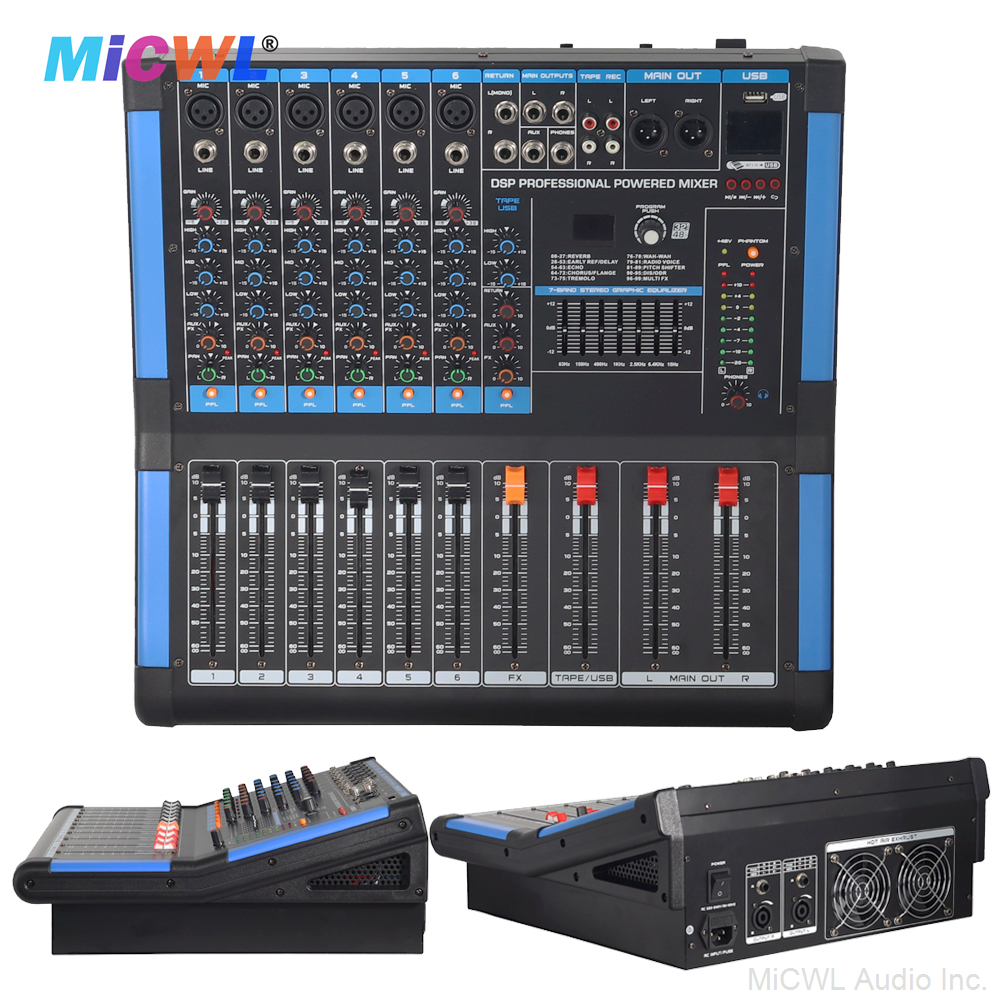

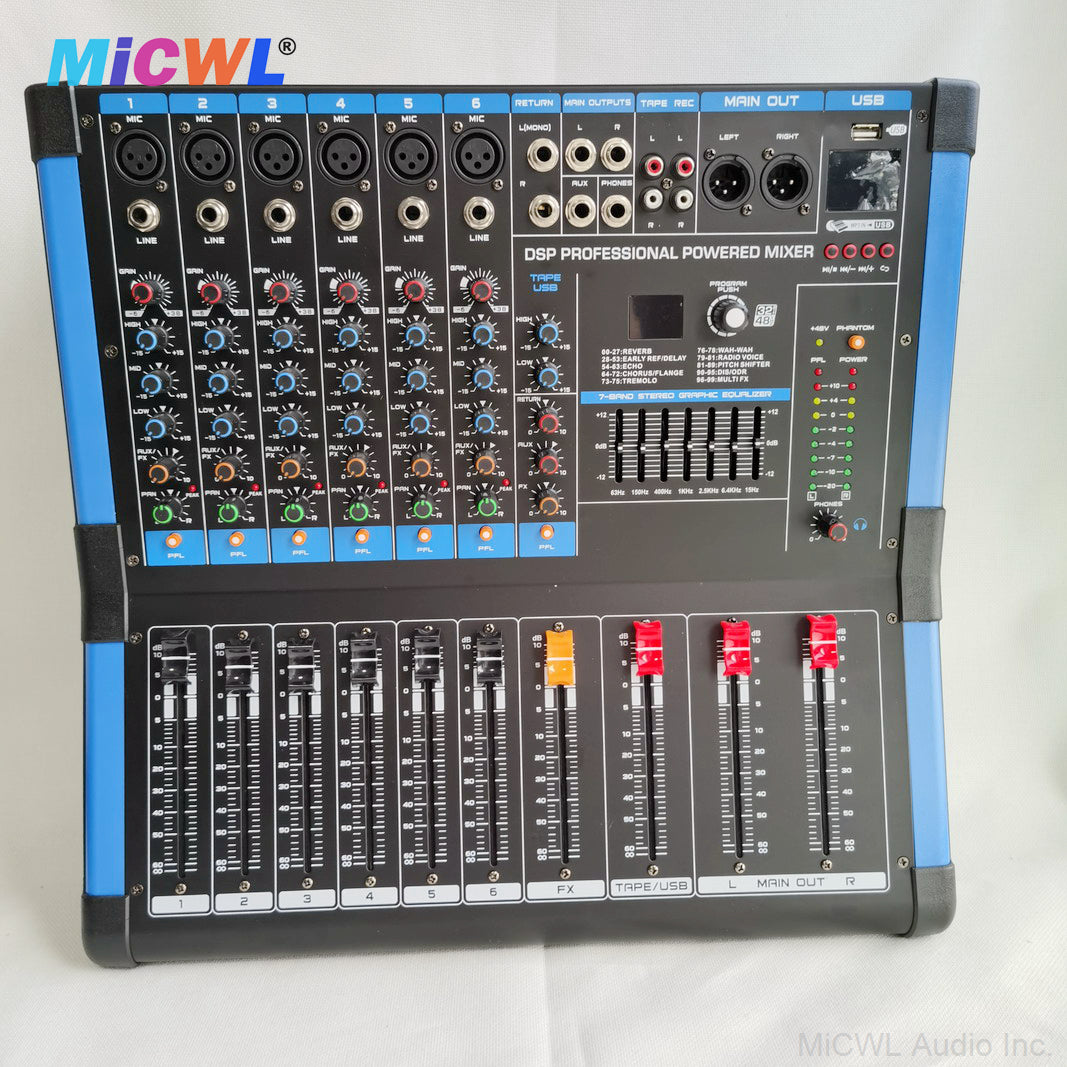

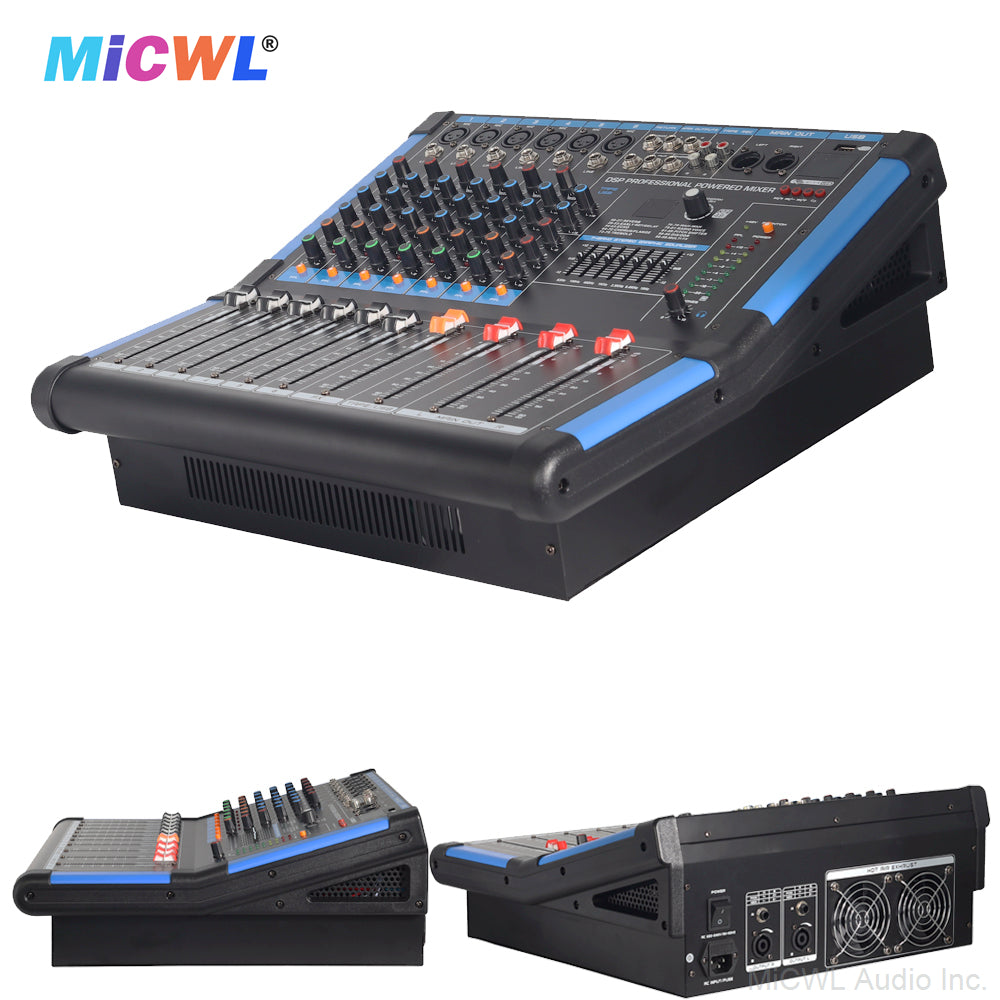

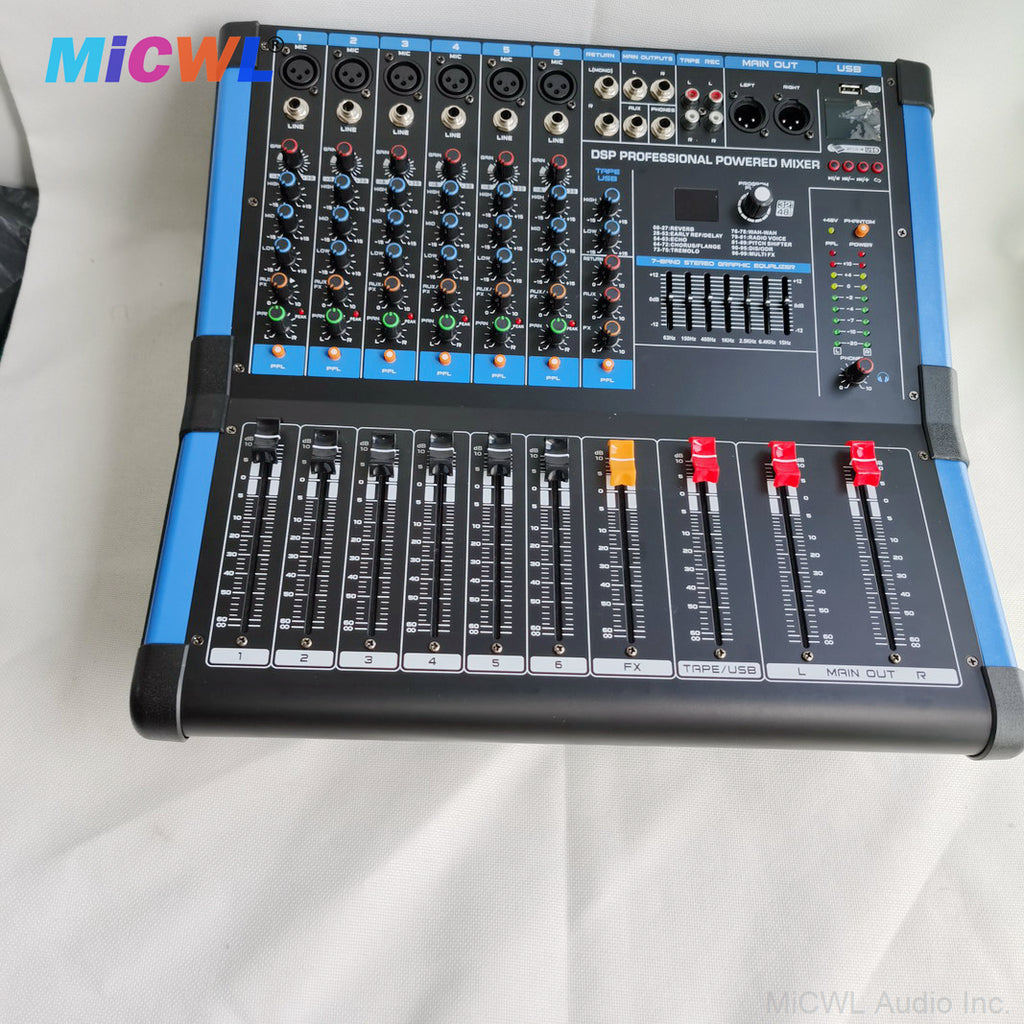

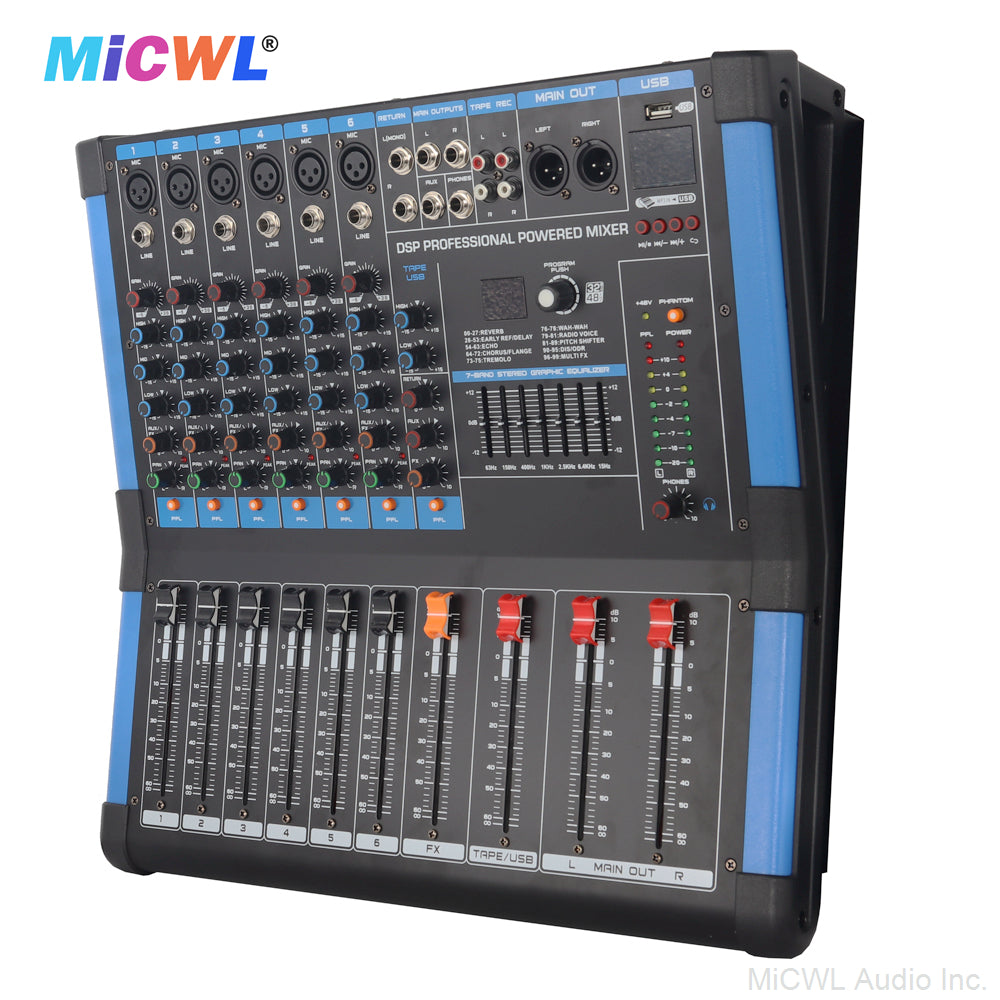

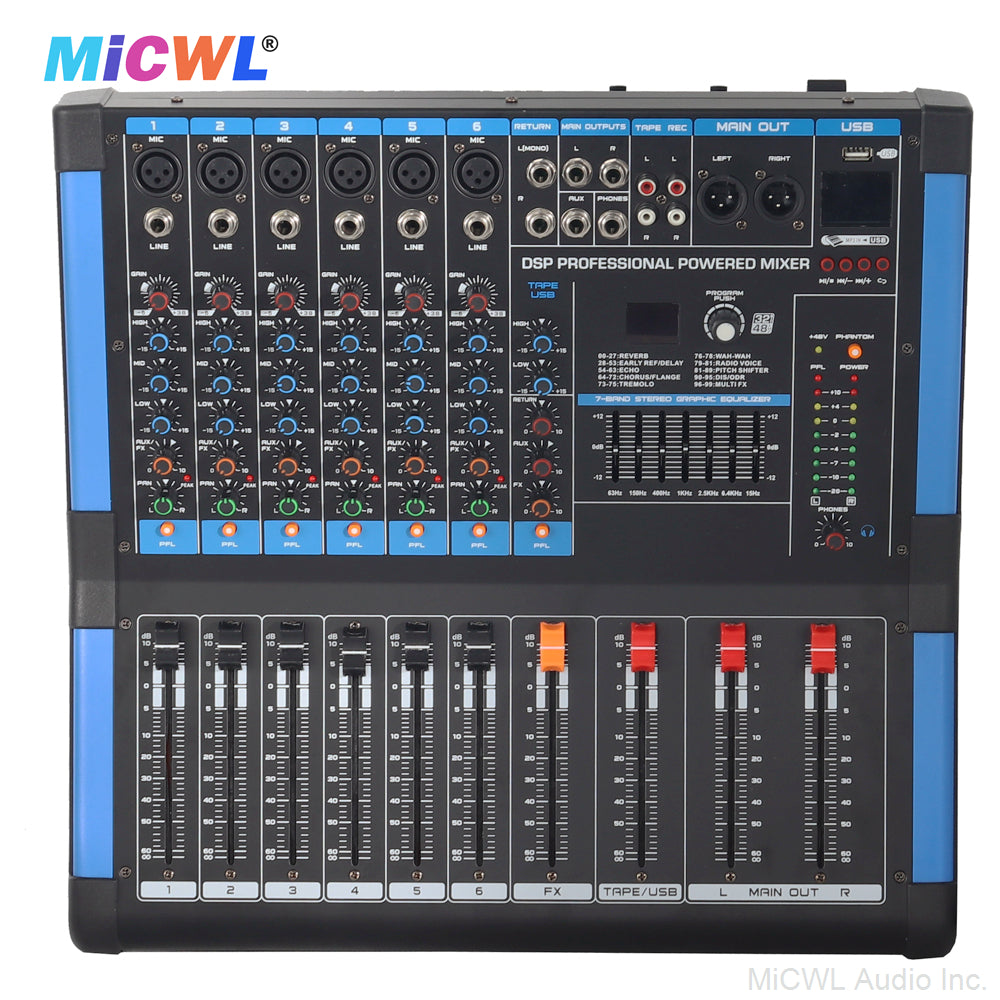

The BG600 6-Channel 1200W Audio Mixer Power Amplifier combines a versatile mixing console and a powerful stereo amplifier into one rugged, all-in-one unit. It provides 2 × 600W of clean power at 4 Ohms to drive passive speakers directly, eliminating the need for a separate power amp. With four mono mic/line channels (XLR/1/4″ combo), one stereo line channel, and a dedicated stereo USB/Bluetooth channel, the BG600 handles live bands, DJ gigs, conference rooms, and streaming setups with ease. Bluetooth 5.0 wireless music streaming, USB MP3 playback, 48V phantom power, a 5-band master EQ, and 16 built-in digital effects make it a complete live sound command center.
Key Features & Benefits
🔹 1200W Built-In Power Amplifier – Drive Passive Speakers Directly

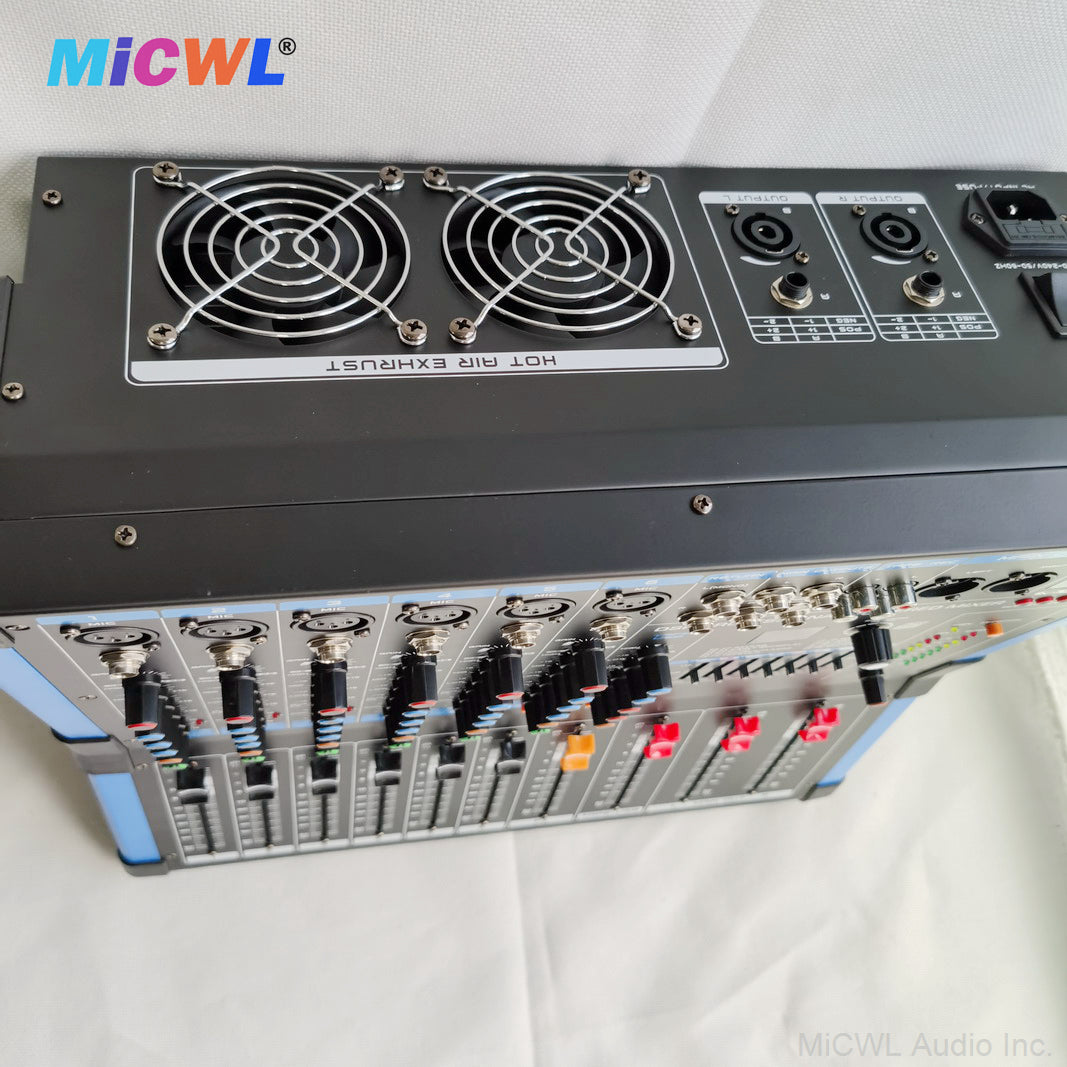

The core amplifier delivers 2 × 600W into 4 Ohms (suitable for 4-8 Ohm speaker cabinets), with robust speaker outputs on the rear panel. No external power amp is required. The mixer's XLR balanced main outputs can also feed powered speakers or a front-of-house system, while the internal amp powers monitors or side-fills — giving you maximum flexibility for any venue size.
🔹 Flexible 6-Channel Configuration with 48V Phantom Power
Channels 1–4 (Mono): XLR/1/4" combo jacks with individual 3-band EQ, pan, mute, PFL, and +48V phantom power switch for condenser microphones. Channel 5 (Stereo Line): Dual 1/4" inputs for keyboards, drum machines, or external sources, also with 3-band EQ and PFL. Channel 6 (USB/Bluetooth): Dedicated stereo digital player with independent volume, mute, and PFL controls for background music, backing tracks, or break entertainment.
🔹 Bluetooth 5.0 & USB MP3 Playback with Crisp Display
One-touch Bluetooth pairing lets you wirelessly stream audio from any smartphone, tablet, or laptop with zero cable clutter. A front-facing USB port plays MP3 tracks directly from flash drives. The digital LCD display shows track number, play/pause status, and input mode (USB/Bluetooth), with onboard transport and repeat controls right on the mixer surface.
🔹 5-Band Master EQ & 16 Preset Digital Effects
Shape your overall sound with the 5-band master graphic equalizer (80Hz, 250Hz, 800Hz, 2.5kHz, 8kHz, ±12dB) to compensate for room acoustics or speaker response. The built-in 16 preset digital effects processor includes reverbs, delays, chorus, flanger, and more, with dedicated send/return controls on each mono channel and a master effect level — perfect for adding professional polish to vocals and instruments without external gear.
🔹 Comprehensive Monitoring, Routing & Professional Build
PFL (Pre-Fader Listen) on every channel with dedicated LED indicator enables silent sound check and cueing. Separate control room and headphone outputs with independent level control plus a monitor send with master level. XLR balanced main outputs, 1/4″ monitor outputs, record outputs, and tape in/out jacks provide full connectivity for recording devices and external effects. Housed in a rugged all-metal chassis with smooth 60 mm faders, clear LED metering (main L/R, PFL, signal/clip), and a universal 110-240V internal power supply. CE and FCC certified, designed for reliable daily use in touring and fixed installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BG600 |
| Channels | 6 (4 Mono + 2 Stereo) |
| Power Output | 2 × 600W @ 4 Ohm (4-8 Ohm compatible) |
| Mono Inputs | 4× XLR/1/4" combo, 3-band EQ, pan, mute, PFL, 48V phantom power switch |
| Stereo Inputs | Ch 5: 2× 1/4" (L/R), 3-band EQ, mute, PFL; Ch 6: USB/Bluetooth, volume, mute, PFL |
| Phantom Power | +48V (switchable per mono channel) |
| Master EQ | 5-Band Graphic EQ: 80Hz, 250Hz, 800Hz, 2.5kHz, 8kHz (±12 dB) |
| Digital Effects | 16 presets (reverb, echo, delay, chorus, flanger, etc.) |
| Bluetooth | 5.0 wireless audio streaming |
| USB Playback | MP3 (front-panel USB port, LED display, transport controls) |
| Outputs | XLR main L/R, 1/4" monitor, 1/4" control room, 1/4" headphone, RCA record, RCA tape in/out, speaker outs (banana/binding post) |
| Metering | LED: main L/R level, PFL active, signal/clip per channel |
| Power Supply | 110-240V AC, 50/60 Hz, internal power supply |
| Certifications | CE, FCC |
| Warranty | 1 Year (Manufacturer: MiCWL Audio Inc.) |
What‘s in the Box
- ✅ 1× BG600 6-Channel Powered Mixer
- ✅ 1× AC Power Cord (110-240V)
- ✅ 1× User Manual
